70YN15-2CT Single-phase Capacitor-operated Asynchronous Motor

Core Electrical Parameters
Rated Voltage & Frequency: AC 220V, 50Hz
Rated Power: 15W
Rated Current: 0.23A
Speed Range: 90–1400 r/min

Availability:

Quantity:



Inquire Add to Basket

Model:
70YN15-2CT
Brand:
Shanghai Shangzi
Code:
844859000

Wholesale warp knitting machine suppliers Warp knitting machine for textile manufacturing Warp knitting machine manufacturers tricot machine weft knitting machine High-performance double needle bar machine Automatic stitch bonding machine Elastane Warping Machine Tricot needle warp beam

Product Description

Product Brief Introduction

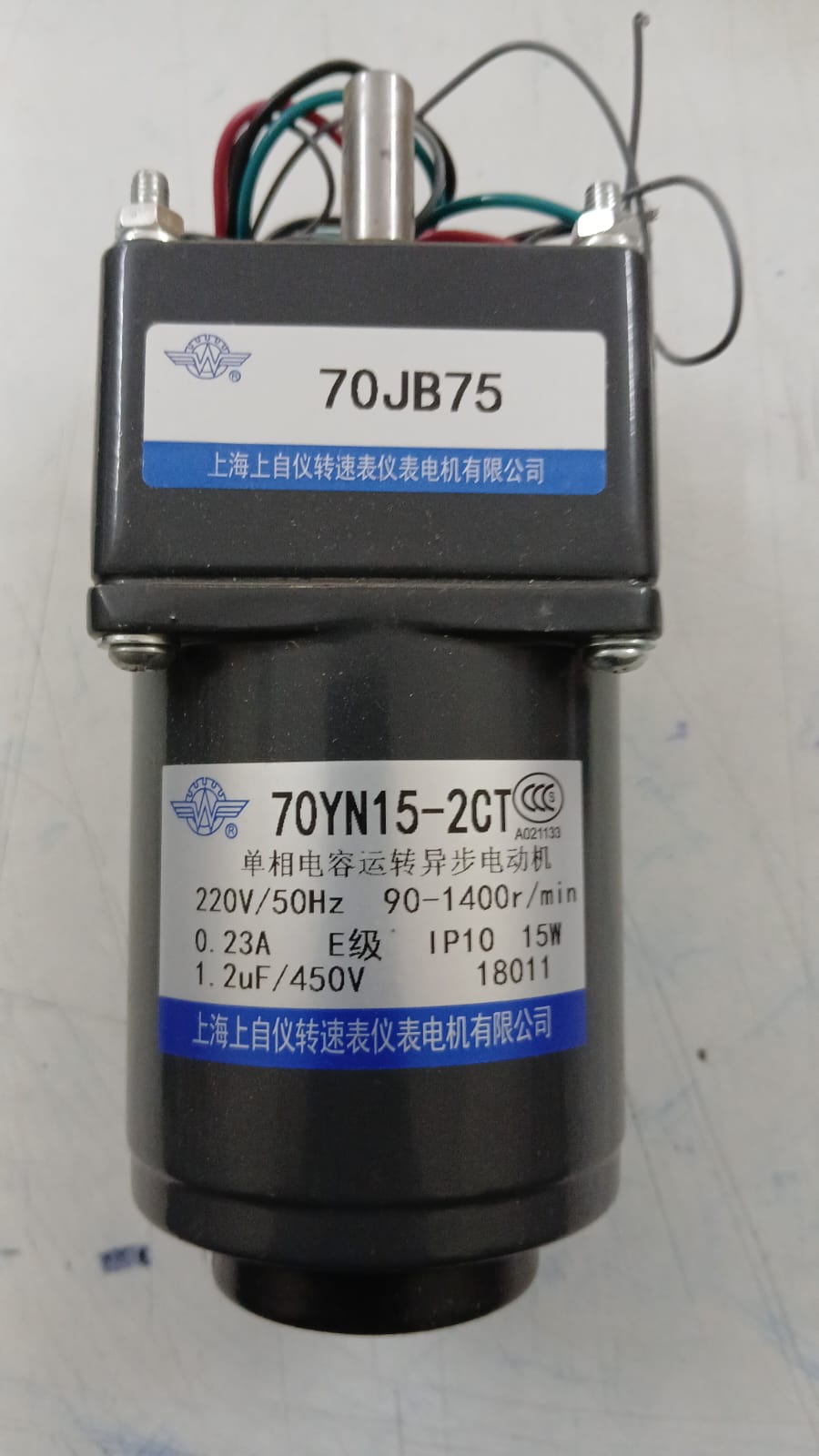

This is a 70YN15-2CT single-phase capacitor-run asynchronous motor equipped with a 70JB75 gear reduction head, produced by Shanghai Shangzi Tachometer and Instrument Motor Co., Ltd.

Working under AC 220V 50Hz power supply, the motor features 15W rated power, 0.23A rated current, and an adjustable rotating speed ranging from 90 to 1400 rpm. It needs a 1.2μF/450V matching starting capacitor, with E-class insulation grade and IP10 protection level.

Compact in structure, stable in operation and low in noise, this geared micro motor is widely applied in instrumentation, textile equipment, automatic control actuators, small transmission machinery and precision winding devices.
