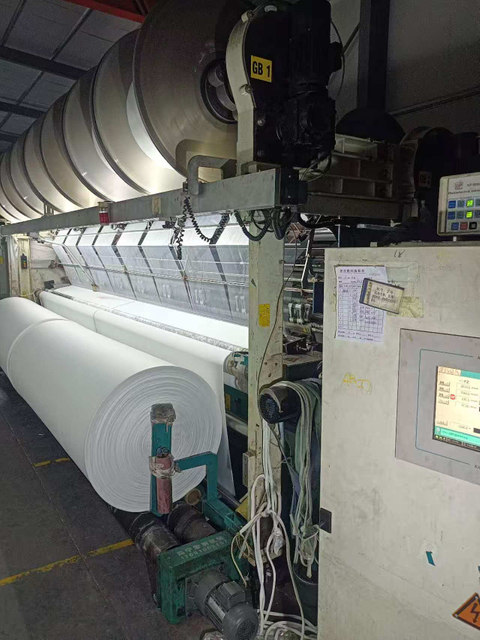

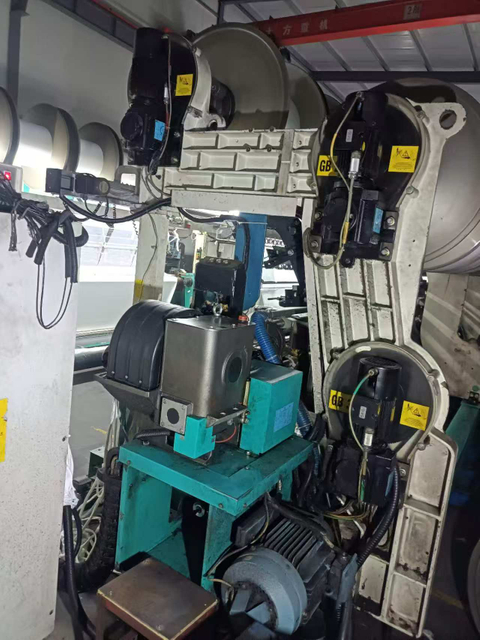

Brief:Karl Mayer is a globally leading manufacturer of warp knitting machines, and the TM series is the core product line of its high-performance Trico warp knitting machines. As an important member of this series, TM3 is a very classic and successful model, renowned for its high productivity, outstanding flexibility and reliability. The following is a detailed introduction to the Karl Mayer TM3 warp knitting machine: Karl Mayer is a globally leading manufacturer of warp knitting machines, and the TM series is the core product line of its high-performance Trico warp knitting machines. As an important member of this series, TM3 is a very classic and successful model, renowned for its high productivity, outstanding flexibility and reliability. The following is a detailed introduction to the Karl Mayer TM3 warp knitting machine:

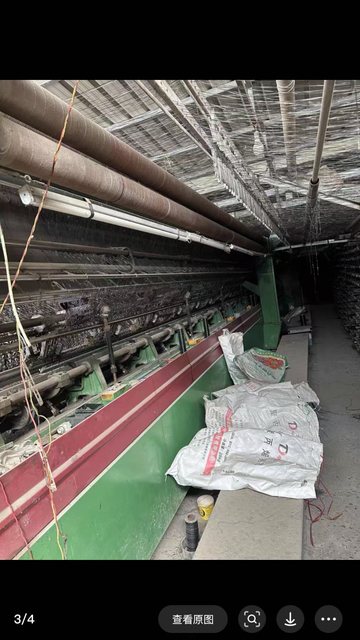

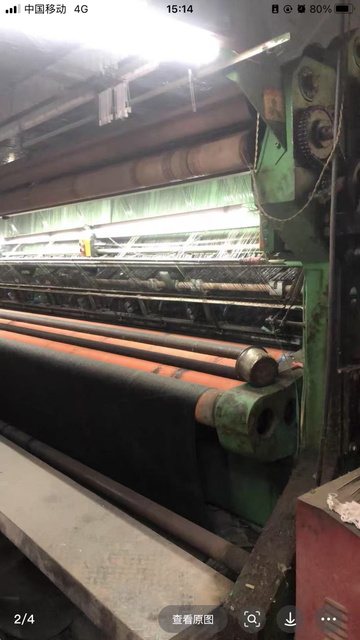

Brief:Ok. I'm very glad to introduce the sunshade net warp knitting machine to you in detail. This is a highly specialized field of textile machinery. In simple terms, the sunshade net warp knitting machine is a high-performance knitting equipment specifically designed for the production of various types of sunshade nets, sun protection nets, agricultural sunshade nets and other mesh fabrics. ** Below, I will provide a comprehensive introduction from aspects such as working principle, main features, key technologies, production process and application fields.Ok. I'm very glad to introduce the sunshade net warp knitting machine to you in detail. This is a highly specialized field of textile machinery. In simple terms, the sunshade net warp knitting machine is a high-performance knitting equipment specifically designed for the production of various types of sunshade nets, sun protection nets, agricultural sunshade nets and other mesh fabrics. ** Below, I will provide a comprehensive introduction from aspects such as working principle, main features, key technologies, production process and application fields.

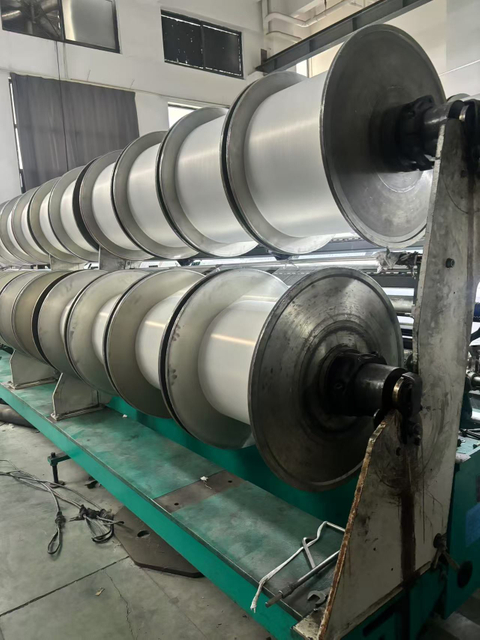

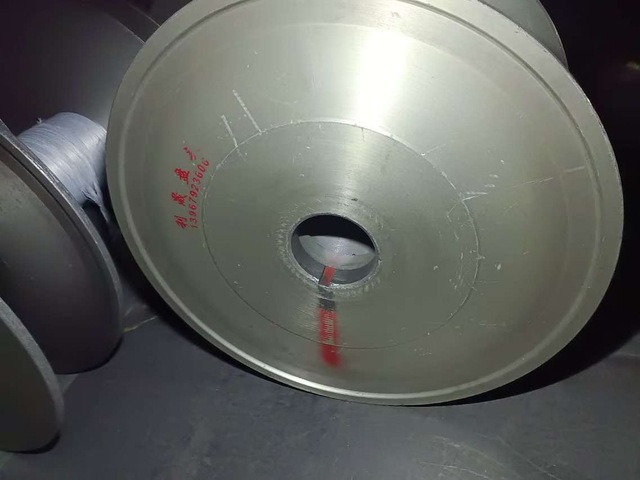

--- Introduction to Warp Knitting Machine Disk Heads #### ** I. What is a coil? ** The "reel head", also known as the "warp shaft" in the warp knitting industry, is a key yarn feeding component on warp knitting machines. Its shape is usually a huge cylindrical or conical drum. Its core function is to continuously and stably convey thousands of warp yarns that have been parallel and evenly wound in the preparation process (such as warping) to the loop area of the warp knitting machine at a certain tension and speed, for knitting into fabric. You can understand it as a huge yarn "supply warehouse" or "stringing frame", which serves as a bridge connecting the previous preparation process and the warp knitting process." class=""> Brief:Ok. This is a brief introduction to warp knitting machine heads, covering aspects such as their definition, structure, functions, types and applications. --- Introduction to Warp Knitting Machine Disk Heads #### ** I. What is a coil? ** The "reel head", also known as the "warp shaft" in the warp knitting industry, is a key yarn feeding component on warp knitting machines. Its shape is usually a huge cylindrical or conical drum. Its core function is to continuously and stably convey thousands of warp yarns that have been parallel and evenly wound in the preparation process (such as warping) to the loop area of the warp knitting machine at a certain tension and speed, for knitting into fabric. You can understand it as a huge yarn "supply warehouse" or "stringing frame", which serves as a bridge connecting the previous preparation process and the warp knitting process.Ok. This is a brief introduction to warp knitting machine heads, covering aspects such as their definition, structure, functions, types and applications. --- Introduction to Warp Knitting Machine Disk Heads #### ** I. What is a coil? ** The "reel head", also known as the "warp shaft" in the warp knitting industry, is a key yarn feeding component on warp knitting machines. Its shape is usually a huge cylindrical or conical drum. Its core function is to continuously and stably convey thousands of warp yarns that have been parallel and evenly wound in the preparation process (such as warping) to the loop area of the warp knitting machine at a certain tension and speed, for knitting into fabric. You can understand it as a huge yarn "supply warehouse" or "stringing frame", which serves as a bridge connecting the previous preparation process and the warp knitting process.
You can understand it as a huge yarn "supply warehouse" or "stringing frame", which serves as a bridge connecting the previous preparation process and the warp knitting process.
#### ** II. Main structure of the coil head **
A typical plate head mainly consists of the following parts:
1. ** Drum body ** : The main part of the reel head is a hollow drum with a surface that is usually very smooth to prevent the yarn from being scratched. The yarn is tightly wound around the cylinder. 2. ** Side discs ** : Two huge discs installed at both ends of the cylinder. Its core function is to ** restrict the yarn layer **, prevent the yarn from falling off or becoming disordered from both sides during high-speed unwinding, and ensure the smooth progress of yarn unwinding. 3. ** Shaft Core ** : A metal shaft running through the center of the disk head, with specific structures (such as keyways, flanges, etc.) at both ends, used to install and fix the disk head on the warp frame of the warp knitting machine. 4. ** Locking device ** : It is used to firmly lock the side plate onto the shaft core to ensure that the plate head does not loosen during high-speed operation.
#### ** III. Core functions of the disk head **
1. ** Storage and supply of yarn ** : This is the most fundamental function of the yarn reel. It stores a huge length of warp yarns, enabling the warp knitting machine to operate continuously for long periods without the need for frequent shutdowns to change yarns. 2. ** Control of warp feeding tension ** : The winding head is driven by the ** warp feeding mechanism ** behind it, which can achieve a ** constant ** or ** variable ** according to the pattern requirements of the warp feeding volume. Maintaining uniform and stable unwinding tension is the key to obtaining high-quality, flawless knitted fabrics. 3. ** Supporting yarn structure ** : When weaving complex patterns, different reel ends can respectively support different types, colors or specifications of yarns, thereby forming rich patterns, textures and effects in the fabric.
#### ** IV. Classification of plate heads **
According to different application requirements and machine types, there are various classification methods for disk heads:
** * Classified by applicable models ** : ** * Trick warp knitting machine head ** : Usually smaller in size and lighter in weight, it is suitable for high-speed and batch production of fabrics such as underwear and mesh. ** * Raschel warp knitting machine head ** : Usually larger in size, heavier and stronger, it is used to produce thick and complex fabrics, such as curtains, blankets, industrial fabrics, etc. ** * Jaka warp knitting machine head ** : For machines equipped with Jaka jacquard devices, " class=""> Brief:Ok. This is a brief introduction to warp knitting machine heads, covering aspects such as their definition, structure, functions, types and applications.
---
Introduction to Warp Knitting Machine Disk Heads
#### ** I. What is a coil? **
The "reel head", also known as the "warp shaft" in the warp knitting industry, is a key yarn feeding component on warp knitting machines. Its shape is usually a huge cylindrical or conical drum. Its core function is to continuously and stably convey thousands of warp yarns that have been parallel and evenly wound in the preparation process (such as warping) to the loop area of the warp knitting machine at a certain tension and speed, for knitting into fabric.
You can understand it as a huge yarn "supply warehouse" or "stringing frame", which serves as a bridge connecting the previous preparation process and the warp knitting process.
#### ** II. Main structure of the coil head **
A typical plate head mainly consists of the following parts:
1. ** Drum body ** : The main part of the reel head is a hollow drum with a surface that is usually very smooth to prevent the yarn from being scratched. The yarn is tightly wound around the cylinder. 2. ** Side discs ** : Two huge discs installed at both ends of the cylinder. Its core function is to ** restrict the yarn layer **, prevent the yarn from falling off or becoming disordered from both sides during high-speed unwinding, and ensure the smooth progress of yarn unwinding. 3. ** Shaft Core ** : A metal shaft running through the center of the disk head, with specific structures (such as keyways, flanges, etc.) at both ends, used to install and fix the disk head on the warp frame of the warp knitting machine. 4. ** Locking device ** : It is used to firmly lock the side plate onto the shaft core to ensure that the plate head does not loosen during high-speed operation.
#### ** III. Core functions of the disk head **
1. ** Storage and supply of yarn ** : This is the most fundamental function of the yarn reel. It stores a huge length of warp yarns, enabling the warp knitting machine to operate continuously for long periods without the need for frequent shutdowns to change yarns. 2. ** Control of warp feeding tension ** : The winding head is driven by the ** warp feeding mechanism ** behind it, which can achieve a ** constant ** or ** variable ** according to the pattern requirements of the warp feeding volume. Maintaining uniform and stable unwinding tension is the key to obtaining high-quality, flawless knitted fabrics. 3. ** Supporting yarn structure ** : When weaving complex patterns, different reel ends can respectively support different types, colors or specifications of yarns, thereby forming rich patterns, textures and effects in the fabric.
#### ** IV. Classification of plate heads **
According to different application requirements and machine types, there are various classification methods for disk heads:
** * Classified by applicable models ** : ** * Trick warp knitting machine head ** : Usually smaller in size and lighter in weight, it is suitable for high-speed and batch production of fabrics such as underwear and mesh. ** * Raschel warp knitting machine head ** : Usually larger in size, heavier and stronger, it is used to produce thick and complex fabrics, such as curtains, blankets, industrial fabrics, etc. ** * Jaka warp knitting machine head ** : For machines equipped with Jaka jacquard devices,
** *Elastic Fabric expert: ** "E" stands for **Elastic**. It is specially designed for the efficient production of warp knitted fabrics containing elastic yarns such as spandex /Lycra®. A special design has been adopted in the drawing and winding area to handle the elastic yarn gently and steadily. ** * Raschel Technology: Based on the mature ** Raschel warp knitting ** technology, it excels in manufacturing mesh, lace, spacer fabrics, sports fabrics, underwear fabrics, functional fabrics, and medical bandages, etc.
2. Main technical features and advantages ** *4 combs: ** "4-1" indicates that it comes standard with **4 combs. This provides sufficient flexibility to weave a variety of basic to moderately complex structures (such as plain weave, mesh, and simple jacquard effects). The fourth comb is usually used for weft interlacing or partial jacquard. ** * Electronic traverse system: ** Usually equipped with **EL** electronic comb traverse system (such as SU electronic traverse or more advanced models). This has achieved: ** * Extremely high pattern flexibility: ** Pattern changes only require program modifications without the need to replace the chain blocks, significantly reducing product switching time. ** * Complex pattern capability: ** It can produce more complex patterns than traditional mechanical machines. ** * Precise control ** : Ensure the consistency and high quality of the pattern. ** *EAC® Electronic Traction System: Standard or optional electronic traction system. This provides: ** * Precise fabric tension control: ** is crucial for handling elastic yarns, ensuring the fabric's weight, density and dimensional stability. ** * Pattern-related stretching: ** The stretching amount can be adjusted according to the needs of different parts of the pattern to optimize the fabric quality. Easy to operate and replicate the process. ** ** * High-efficiency loop forming system: The optimized loop forming machine components (needle bed, settling sheet bed, yarn guide needle, etc.) design ensures stability and fabric quality during high-speed operation. ** * Modular design: ** Easy to maintain and upgrade. ** User-friendly operation: Equipped with an advanced **KAMCOS® 2** control system (or similar), it offers a large-sized touchscreen interface, simplifying machine setup, pattern input, process parameter adjustment, production monitoring and fault diagnosis. ** * Network Interface ** : Supports factory network integration to achieve data exchange and remote monitoring. ** * High reliability ** : Karl Mayer is renowned for the robustness and long lifespan of its machines, and the RSE4-1 is no exception.
3. Typical application fields ** * Sportswear fabrics: ** High-elasticity fabrics for underwear, swimsuits, sportswear bras, yoga wear, and cycling wear. ** * Underwear fabrics: ** Bra cup fabric, underwear elastic sole, tight-fitting fabric. ** Functional fabrics: ** Medical compression stockings, bandages, support fabrics. ** * Shoe materials: ** Partial upper materials. Home textiles: Elastic decorative fabrics, mattress covers, etc. Basic mesh and elastic mesh fabric. **

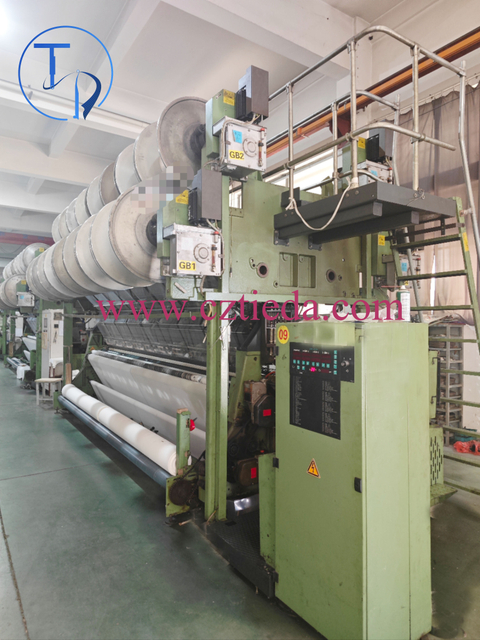

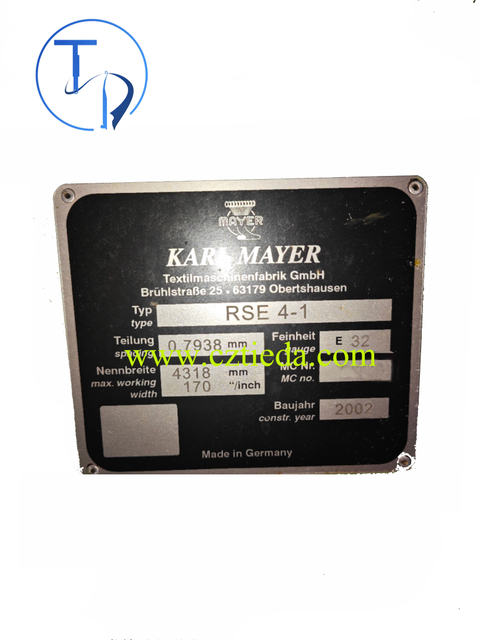

" class=""> Brief:The following is the key introduction and features of Karl Mayer RSE4-1:
1. Core positioning ** * High-speed production ** As indicated by the "S" in its model, it is a ** high-speed ** model, designed to achieve extremely high production efficiency. Its maximum machine speed can reach 1700 revolutions per minute (depending on specific configuration, yarn and fabric structure), which makes it highly competitive in terms of output. ** *Elastic Fabric expert: ** "E" stands for **Elastic**. It is specially designed for the efficient production of warp knitted fabrics containing elastic yarns such as spandex /Lycra®. A special design has been adopted in the drawing and winding area to handle the elastic yarn gently and steadily. ** * Raschel Technology: Based on the mature ** Raschel warp knitting ** technology, it excels in manufacturing mesh, lace, spacer fabrics, sports fabrics, underwear fabrics, functional fabrics, and medical bandages, etc.
2. Main technical features and advantages ** *4 combs: ** "4-1" indicates that it comes standard with **4 combs. This provides sufficient flexibility to weave a variety of basic to moderately complex structures (such as plain weave, mesh, and simple jacquard effects). The fourth comb is usually used for weft interlacing or partial jacquard. ** * Electronic traverse system: ** Usually equipped with **EL** electronic comb traverse system (such as SU electronic traverse or more advanced models). This has achieved: ** * Extremely high pattern flexibility: ** Pattern changes only require program modifications without the need to replace the chain blocks, significantly reducing product switching time. ** * Complex pattern capability: ** It can produce more complex patterns than traditional mechanical machines. ** * Precise control ** : Ensure the consistency and high quality of the pattern. ** *EAC® Electronic Traction System: Standard or optional electronic traction system. This provides: ** * Precise fabric tension control: ** is crucial for handling elastic yarns, ensuring the fabric's weight, density and dimensional stability. ** * Pattern-related stretching: ** The stretching amount can be adjusted according to the needs of different parts of the pattern to optimize the fabric quality. Easy to operate and replicate the process. ** ** * High-efficiency loop forming system: The optimized loop forming machine components (needle bed, settling sheet bed, yarn guide needle, etc.) design ensures stability and fabric quality during high-speed operation. ** * Modular design: ** Easy to maintain and upgrade. ** User-friendly operation: Equipped with an advanced **KAMCOS® 2** control system (or similar), it offers a large-sized touchscreen interface, simplifying machine setup, pattern input, process parameter adjustment, production monitoring and fault diagnosis. ** * Network Interface ** : Supports factory network integration to achieve data exchange and remote monitoring. ** * High reliability ** : Karl Mayer is renowned for the robustness and long lifespan of its machines, and the RSE4-1 is no exception.
3. Typical application fields ** * Sportswear fabrics: ** High-elasticity fabrics for underwear, swimsuits, sportswear bras, yoga wear, and cycling wear. ** * Underwear fabrics: ** Bra cup fabric, underwear elastic sole, tight-fitting fabric. ** Functional fabrics: ** Medical compression stockings, bandages, support fabrics. ** * Shoe materials: ** Partial upper materials. Home textiles: Elastic decorative fabrics, mattress covers, etc. Basic mesh and elastic mesh fabric. **
