** *Elastic Fabric expert: ** "E" stands for **Elastic**. It is specially designed for the efficient production of warp knitted fabrics containing elastic yarns such as spandex /Lycra®. A special design has been adopted in the drawing and winding area to handle the elastic yarn gently and steadily. ** * Raschel Technology: Based on the mature ** Raschel warp knitting ** technology, it excels in manufacturing mesh, lace, spacer fabrics, sports fabrics, underwear fabrics, functional fabrics, and medical bandages, etc.
2. Main technical features and advantages ** *4 combs: ** "4-1" indicates that it comes standard with **4 combs. This provides sufficient flexibility to weave a variety of basic to moderately complex structures (such as plain weave, mesh, and simple jacquard effects). The fourth comb is usually used for weft interlacing or partial jacquard. ** * Electronic traverse system: ** Usually equipped with **EL** electronic comb traverse system (such as SU electronic traverse or more advanced models). This has achieved: ** * Extremely high pattern flexibility: ** Pattern changes only require program modifications without the need to replace the chain blocks, significantly reducing product switching time. ** * Complex pattern capability: ** It can produce more complex patterns than traditional mechanical machines. ** * Precise control ** : Ensure the consistency and high quality of the pattern. ** *EAC® Electronic Traction System: Standard or optional electronic traction system. This provides: ** * Precise fabric tension control: ** is crucial for handling elastic yarns, ensuring the fabric's weight, density and dimensional stability. ** * Pattern-related stretching: ** The stretching amount can be adjusted according to the needs of different parts of the pattern to optimize the fabric quality. Easy to operate and replicate the process. ** ** * High-efficiency loop forming system: The optimized loop forming machine components (needle bed, settling sheet bed, yarn guide needle, etc.) design ensures stability and fabric quality during high-speed operation. ** * Modular design: ** Easy to maintain and upgrade. ** User-friendly operation: Equipped with an advanced **KAMCOS® 2** control system (or similar), it offers a large-sized touchscreen interface, simplifying machine setup, pattern input, process parameter adjustment, production monitoring and fault diagnosis. ** * Network Interface ** : Supports factory network integration to achieve data exchange and remote monitoring. ** * High reliability ** : Karl Mayer is renowned for the robustness and long lifespan of its machines, and the RSE4-1 is no exception.
3. Typical application fields ** * Sportswear fabrics: ** High-elasticity fabrics for underwear, swimsuits, sportswear bras, yoga wear, and cycling wear. ** * Underwear fabrics: ** Bra cup fabric, underwear elastic sole, tight-fitting fabric. ** Functional fabrics: ** Medical compression stockings, bandages, support fabrics. ** * Shoe materials: ** Partial upper materials. Home textiles: Elastic decorative fabrics, mattress covers, etc. Basic mesh and elastic mesh fabric. **
" class=""> Brief:The following is the key introduction and features of Karl Mayer RSE4-1:
1. Core positioning ** * High-speed production ** As indicated by the "S" in its model, it is a ** high-speed ** model, designed to achieve extremely high production efficiency. Its maximum machine speed can reach 1700 revolutions per minute (depending on specific configuration, yarn and fabric structure), which makes it highly competitive in terms of output. ** *Elastic Fabric expert: ** "E" stands for **Elastic**. It is specially designed for the efficient production of warp knitted fabrics containing elastic yarns such as spandex /Lycra®. A special design has been adopted in the drawing and winding area to handle the elastic yarn gently and steadily. ** * Raschel Technology: Based on the mature ** Raschel warp knitting ** technology, it excels in manufacturing mesh, lace, spacer fabrics, sports fabrics, underwear fabrics, functional fabrics, and medical bandages, etc.
2. Main technical features and advantages ** *4 combs: ** "4-1" indicates that it comes standard with **4 combs. This provides sufficient flexibility to weave a variety of basic to moderately complex structures (such as plain weave, mesh, and simple jacquard effects). The fourth comb is usually used for weft interlacing or partial jacquard. ** * Electronic traverse system: ** Usually equipped with **EL** electronic comb traverse system (such as SU electronic traverse or more advanced models). This has achieved: ** * Extremely high pattern flexibility: ** Pattern changes only require program modifications without the need to replace the chain blocks, significantly reducing product switching time. ** * Complex pattern capability: ** It can produce more complex patterns than traditional mechanical machines. ** * Precise control ** : Ensure the consistency and high quality of the pattern. ** *EAC® Electronic Traction System: Standard or optional electronic traction system. This provides: ** * Precise fabric tension control: ** is crucial for handling elastic yarns, ensuring the fabric's weight, density and dimensional stability. ** * Pattern-related stretching: ** The stretching amount can be adjusted according to the needs of different parts of the pattern to optimize the fabric quality. Easy to operate and replicate the process. ** ** * High-efficiency loop forming system: The optimized loop forming machine components (needle bed, settling sheet bed, yarn guide needle, etc.) design ensures stability and fabric quality during high-speed operation. ** * Modular design: ** Easy to maintain and upgrade. ** User-friendly operation: Equipped with an advanced **KAMCOS® 2** control system (or similar), it offers a large-sized touchscreen interface, simplifying machine setup, pattern input, process parameter adjustment, production monitoring and fault diagnosis. ** * Network Interface ** : Supports factory network integration to achieve data exchange and remote monitoring. ** * High reliability ** : Karl Mayer is renowned for the robustness and long lifespan of its machines, and the RSE4-1 is no exception.
3. Typical application fields ** * Sportswear fabrics: ** High-elasticity fabrics for underwear, swimsuits, sportswear bras, yoga wear, and cycling wear. ** * Underwear fabrics: ** Bra cup fabric, underwear elastic sole, tight-fitting fabric. ** Functional fabrics: ** Medical compression stockings, bandages, support fabrics. ** * Shoe materials: ** Partial upper materials. Home textiles: Elastic decorative fabrics, mattress covers, etc. Basic mesh and elastic mesh fabric. **
--- ### ⚙️ ** 1. Core parameters and model positioning ** 1. "Basic Specifications - ** Working width ** : 245 inches (approximately 6.22 meters), featuring an ultra-wide design, suitable for the production of large-sized industrial textiles. - ** Machine number ** : 24 needles (E24), that is, 24 knitting needles per inch, balancing the density and strength requirements of the fabric, suitable for medium and thick industrial base fabrics. - ** Type ** : Full-width weft interlocking warp knitting machine, which adopts parallel weft laying technology. The weft yarn remains in a straight line throughout the process without any bending to enhance mechanical properties. 2. ** Typical Model Series ** - **HKS/RS Series ** : Derivative models such as **RS MSUS-V** or **WEFTTRONIC® II**, specifically optimized for industrial textiles such as fiberglass grating and geotextiles. - ** Technological Innovation ** : Since 2015, the model has upgraded the frame rigidity, an independent motor-driven winding device, and an X/ Y-axis bidirectional weft laying system, significantly enhancing speed and stability." class=""> Brief:The following is a comprehensive introduction to the Karl Mayer 245-inch 24-needle full-width weft lining warp knitting machine, which is integrated based on its technical characteristics, industry positioning and practical applications: --- ### ⚙️ ** 1. Core parameters and model positioning ** 1. "Basic Specifications - ** Working width ** : 245 inches (approximately 6.22 meters), featuring an ultra-wide design, suitable for the production of large-sized industrial textiles. - ** Machine number ** : 24 needles (E24), that is, 24 knitting needles per inch, balancing the density and strength requirements of the fabric, suitable for medium and thick industrial base fabrics. - ** Type ** : Full-width weft interlocking warp knitting machine, which adopts parallel weft laying technology. The weft yarn remains in a straight line throughout the process without any bending to enhance mechanical properties. 2. ** Typical Model Series ** - **HKS/RS Series ** : Derivative models such as **RS MSUS-V** or **WEFTTRONIC® II**, specifically optimized for industrial textiles such as fiberglass grating and geotextiles. - ** Technological Innovation ** : Since 2015, the model has upgraded the frame rigidity, an independent motor-driven winding device, and an X/ Y-axis bidirectional weft laying system, significantly enhancing speed and stability.The following is a comprehensive introduction to the Karl Mayer 245-inch 24-needle full-width weft lining warp knitting machine, which is integrated based on its technical characteristics, industry positioning and practical applications: --- ### ⚙️ ** 1. Core parameters and model positioning ** 1. "Basic Specifications - ** Working width ** : 245 inches (approximately 6.22 meters), featuring an ultra-wide design, suitable for the production of large-sized industrial textiles. - ** Machine number ** : 24 needles (E24), that is, 24 knitting needles per inch, balancing the density and strength requirements of the fabric, suitable for medium and thick industrial base fabrics. - ** Type ** : Full-width weft interlocking warp knitting machine, which adopts parallel weft laying technology. The weft yarn remains in a straight line throughout the process without any bending to enhance mechanical properties. 2. ** Typical Model Series ** - **HKS/RS Series ** : Derivative models such as **RS MSUS-V** or **WEFTTRONIC® II**, specifically optimized for industrial textiles such as fiberglass grating and geotextiles. - ** Technological Innovation ** : Since 2015, the model has upgraded the frame rigidity, an independent motor-driven winding device, and an X/ Y-axis bidirectional weft laying system, significantly enhancing speed and stability.
Brief:The 186-inch warp knitted towel machine of Karl Mayer, model **TM 4 TS EL**, is an innovative model specially designed for the efficient production of towel fabrics. It combines wide production capacity and intelligent technology, significantly enhancing production flexibility and efficiency. The following are its core features and technical analysis: ⚙️ I. Core parameters and design highlights 1. Wide-width and high-efficiency production The working width is 186 inches (approximately 4.72 meters). Compared with the old 136-inch model, the production capacity has increased by 36%, making it suitable for large-scale production of towels, bath towels and other products. By widening the weaving width, the loss of fabric splicing is reduced and the utilization rate of raw materials is optimized. 2. Electronic Lateral Shift System (EL Technology The electronic horizontal movement system is adopted to replace the traditional mechanical flower tray, achieving stepless adjustment and rapid switching of the flower pattern. - ** 30% speed increase ** : When producing towels with edges, the speed is significantly improved compared to the old KS 4 FBZ model. Support high-precision weaving of complex patterns (such as large loop patterns and smooth edges) to enhance the added value of products.### ⚡ 2. Technological innovation and performance advantage

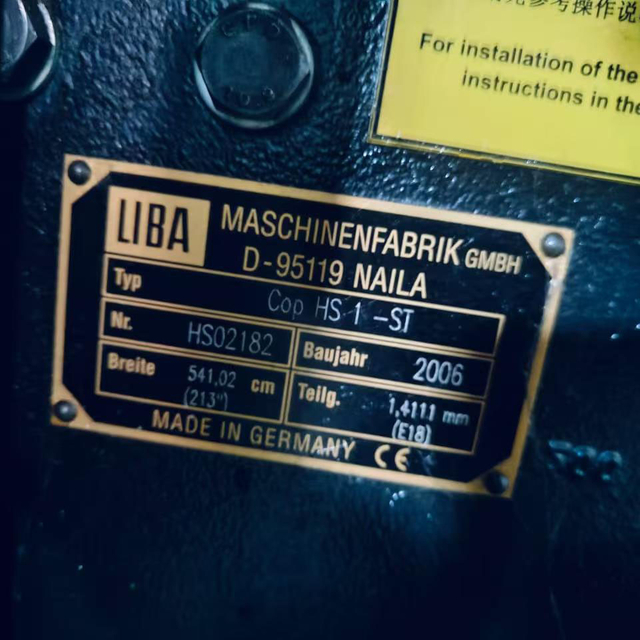

Brief:Germany Liba warp knitting machine - known for precision manufacturing and high-speed performance, specializing in the production of high-end elastic fabrics, lace and industrial textiles, is an intelligent and efficient solution for the textile industry.
Brief:The second - hand KS4 warp knitting machine from Karl Mayer, with a working width of 432cm (170 inches) and medium - throw compound needles, is capable of producing various elastic or non - elastic fabrics for different apparel applications at a high speed of up to 1000rpm.
