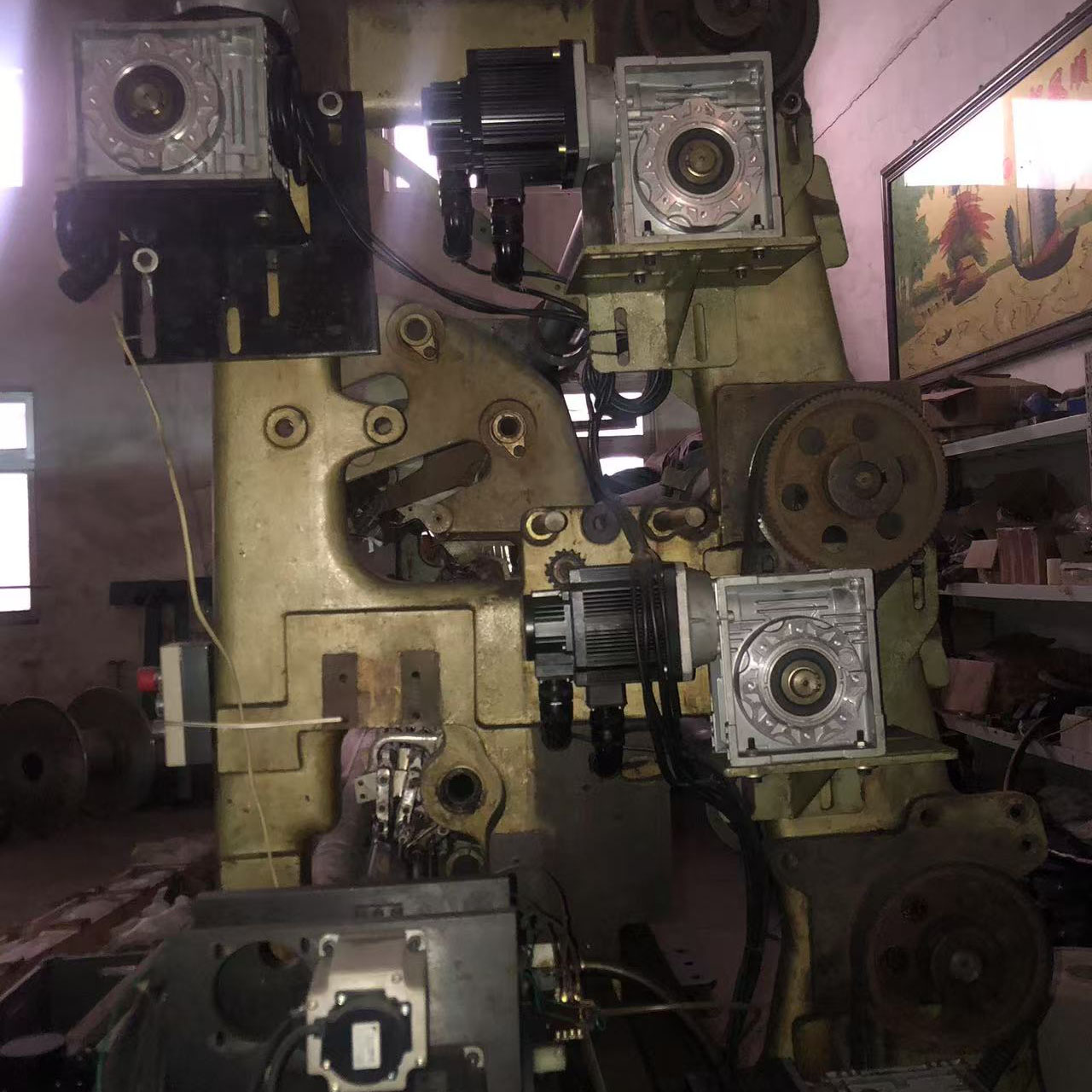

Second-hand KS4 Warp Knitting Machine

 Brand and Model

• Brand: Karl Mayer, a well - known brand in the field of warp knitting machines, whose product quality and performance have always been recognized.

• Model: KS4, a warp knitting machine with specific functions.

Working Width

• The common working width is 432cm (170 inches), which can meet the large - scale production needs.

Knitting Elements

• It is equipped with medium - throw compound needles and needle cores. This design helps to improve the efficiency and quality of knitting and can adapt to a variety of yarns and knitting processes.

• There are 4 beards. The number of beards affects the structure and pattern effect of the fabric. Four beards can provide rich changes for knitting.

• The presence of沉降片can better control the tension and position of the yarn, make the knitting process more stable and improve the quality of the fabric.

Transverse Moving Mechanism

• The N - type pattern mechanism is adopted, and the transverse movement of the guide bar is realized through the cam or chain block. This transverse moving mechanism can accurately control the transverse movement of the yarn to form a variety of complex patterns and patterns to meet the different customers' demands for the appearance of the fabric.

Beam Crest

• The specifications of the beam crest are 4×812mm (32 inches) with independent support. This design can ensure the stable supply of warp yarn, reduce the vibration and tension fluctuation of the yarn, help to improve the stability of knitting and the quality of the fabric.

Let - off Mechanism

• It is equipped with an EBC electronic let - off system, which can accurately control the amount of warp yarn fed to ensure a uniform and stable supply of warp yarn during high - speed knitting. This is very important for ensuring the quality and dimensional stability of the fabric, and also improves the production efficiency.

Drawing Mechanism

• The 4 - roller drawing is adopted, and the drawing speed is changed by the change gear. This drawing method can make the fabric receive a uniform pulling force in the knitting process, ensuring the density and dimensional accuracy of the fabric.

• The EAC electronic drawing mechanism matching with EBC can also be optionally equipped to further improve the accuracy and stability of drawing and meet the higher - quality production needs.

Machine Speed

• The maximum machine speed can reach 1000rpm. The high machine speed can improve the production efficiency and reduce the production cost.

Product Application

• It can produce elastic or non - elastic fabrics, which are widely used in fields such as underwear, swimwear, sportswear, and outerwear.
