I. Core Positioning and Overall Introduction
The Karl Mayer TM3 warp knitting machine is a high-speed, high-efficiency, and electronically controlled Tricor warp knitting machine. It is mainly targeted at the mid-to-high-end market, aiming to meet the demands of customers who have high requirements for output, quality and pattern diversity in large-scale production.
Its design goal is to achieve the highest operating speed and production efficiency while ensuring the quality of the fabric, and at the same time simplify the operation and pattern changing process through electronic means.
Ii. Main Technical Features and Advantages
1. "Extremely high production speed"
TM3 has been mechanically and dynamically optimized to operate stably at extremely high speeds (the specific speed depends on the model number and working width), which directly brings about an unparalleled output advantage and is the key to reducing production costs.
2. ** Mature ring forming machine component configuration **
It adopts the classic N-type comb configuration of Karl Mayer (usually 2 or 3 combs).
Equipped with precisely designed and processed needle beds, settling sheet beds and yarn guiding needle beds, it ensures the stability and consistency of the loop forming process under high-speed operation, thereby producing high-quality fabrics.
3. Flexible electronic control system (key advantage)
** *EL Electronic Comb Transverse Movement System ** : This is a major highlight of the TM3. It replaces the traditional complex flower plates or chain blocks and directly controls the movement of each comb through a servo motor.
** * Advantage ** :
** * Pattern changes are extremely rapid ** : Changing patterns only requires calling up the new pattern file on the computer, without the need to replace any mechanical parts, minimizing downtime.
** * Powerful pattern design capability ** : It can easily achieve complex and large-cycle patterns, breaking through the limitations of mechanical chain blocks.
** High production flexibility ** : Particularly suitable for small-batch, multi-variety order production.
4. Electronic Menstrual Delivery System (EBA)
It adopts an advanced electronic warp feeding system, which can precisely control the amount of yarn fed out for each comb.
** * Advantage ** :
** * Precise warp feeding ** : Ensure the stability of the fabric's weight and structure.
** * Good repeatability ** : Fabrics produced in different batches can maintain a high degree of consistency.
** * Easy to operate ** : The menstrual flow parameters can be directly set and stored through the touch screen.
5. ** Electronic Traction and Winding System **
Working in coordination with the electronic warp feeding system, it ensures that the fabric is smoothly drawn out of the loop area under constant tension and wound into fabric rolls, further guaranteeing the quality of the fabric.
6. User-friendly operation interface

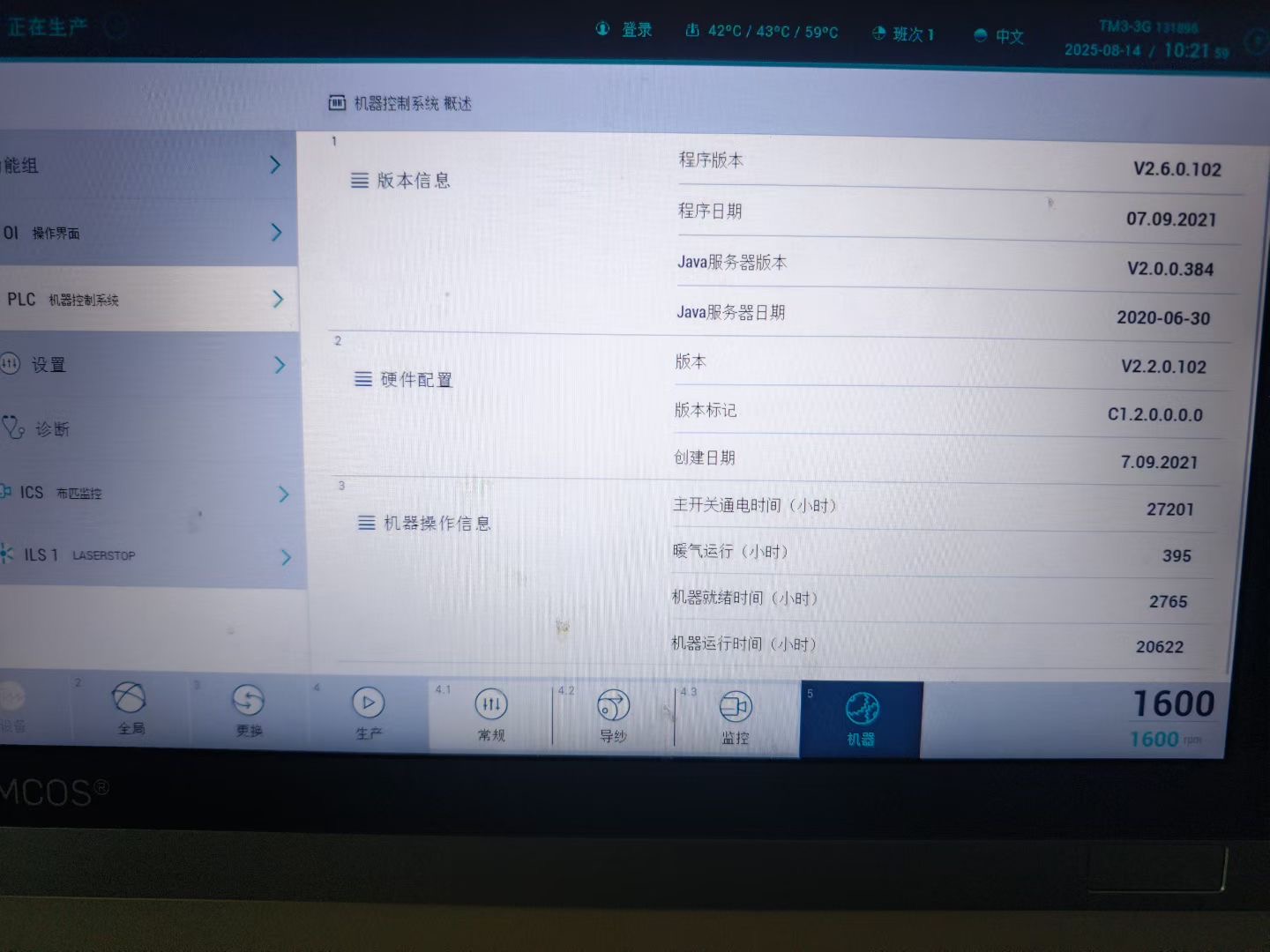

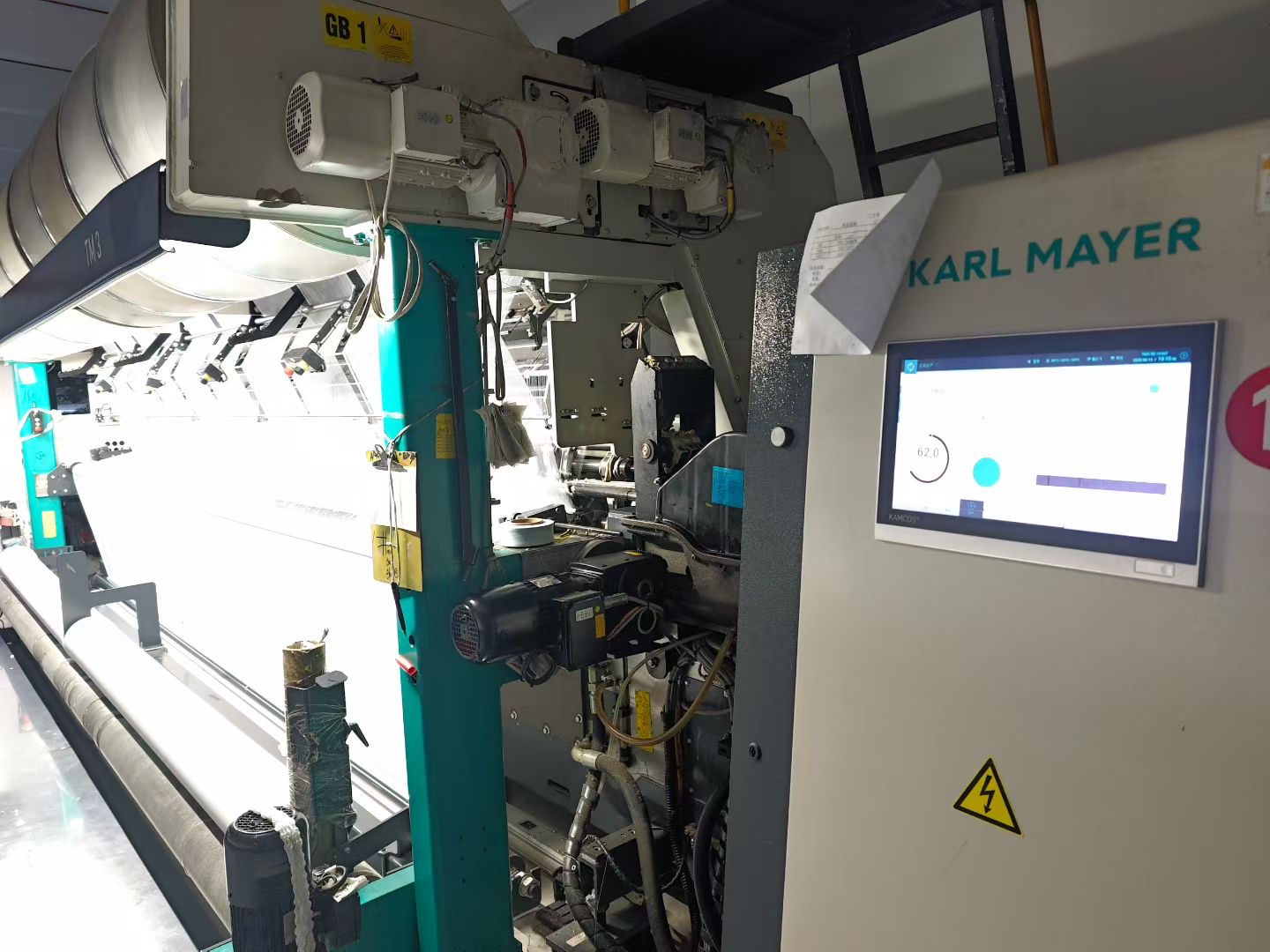

Equipped with a large color touch screen, all machine parameters (such as speed, warp feed, traction density, pattern data, etc.) can be centrally set and monitored here. Operators can easily manage production tasks and diagnose faults.
7. ** Robust and reliable machine structure **
The use of high-quality materials and a sturdy frame design ensures the machine's stability and long service life during long-term high-speed operation, with relatively low maintenance costs.
Iii. Main Application Fields
The fabrics produced by TM3 are widely used in various textile fields, especially
** * Clothing fabrics ** : Functional linings and fabrics for underwear, swimsuits, tight-fitting clothes and sportswear.
** * Shoe materials ** : The upper materials of sports shoes and casual shoes.
** * Household items ** : curtains, mosquito nets, bedspreads, sofa fabrics, etc.
** * Industrial fabrics ** : Used for coating base fabrics, composite materials, etc.
** * Mesh fabric ** : Various mesh fabrics with different structures and densities.
### Four. Model Variants
TM3 comes in different models based on specific configurations, for example:
** *TM 3-T** : Usually refers to the model equipped with ** Trico unloop plate **, which is a standard Trico warp knitting machine.
** *TM 3-M** : May refer to the model equipped with ** loop settling plates **, used for the production of loop fabrics.

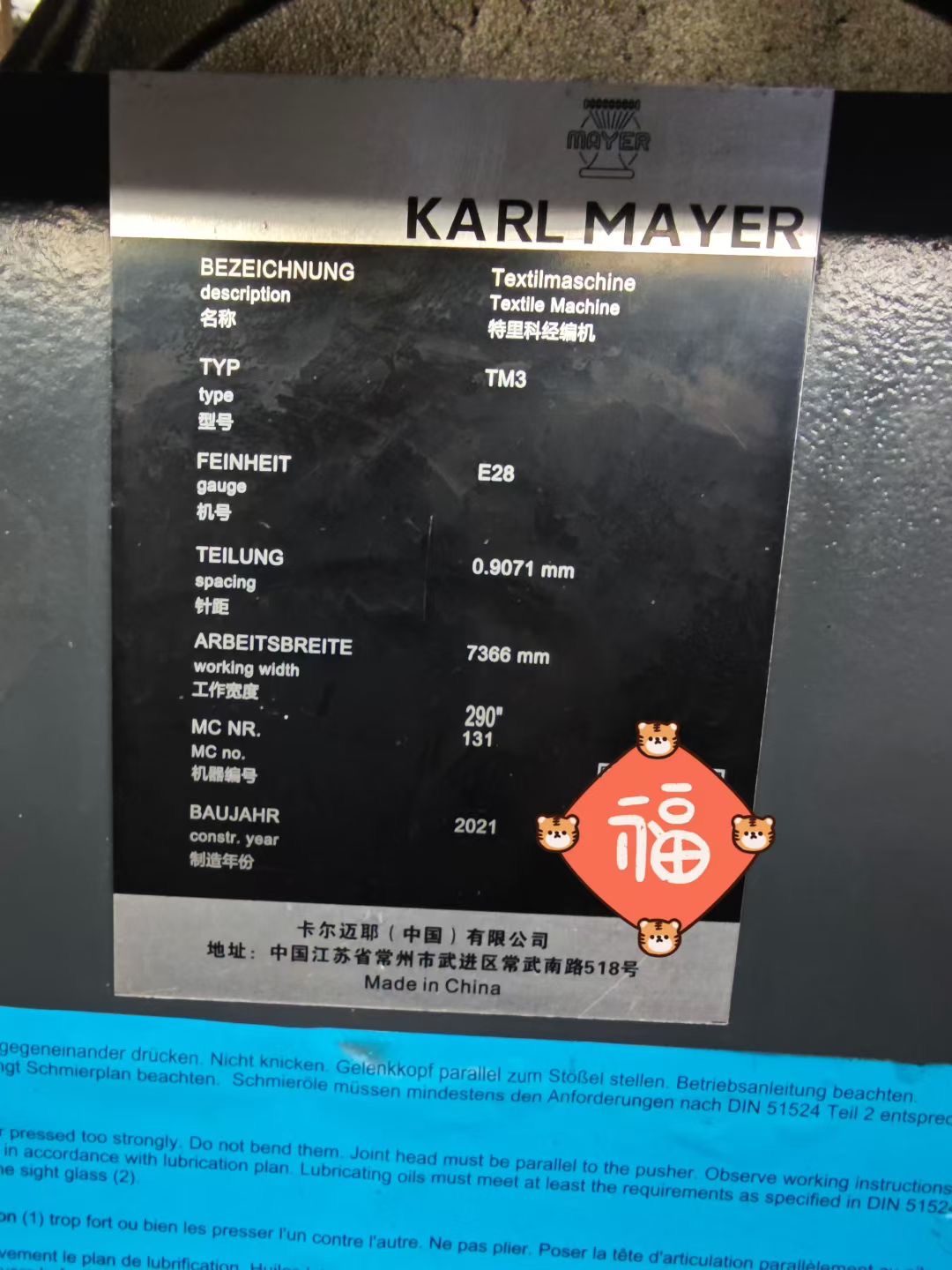

There are also multiple options for the machine number (E) and working width (inches) to meet the requirements of different products.
### Summary
The Karl Mayer TM3 warp knitting machine is a very mature and successful model in the warp knitting industry. It perfectly balances the three elements of speed, flexibility and quality. Although it is not Karl Mayer's latest model (followed by more advanced series such as TM4), TM3 is still widely used worldwide due to its outstanding cost performance, extremely high reliability and wide market applicability, and is the main production equipment for many textile enterprises.
If you are looking for a warp knitting machine that can efficiently and high-quality produce various Tricor warp knitted fabrics, the Karl Mayer TM3 is definitely a choice worth considering.
