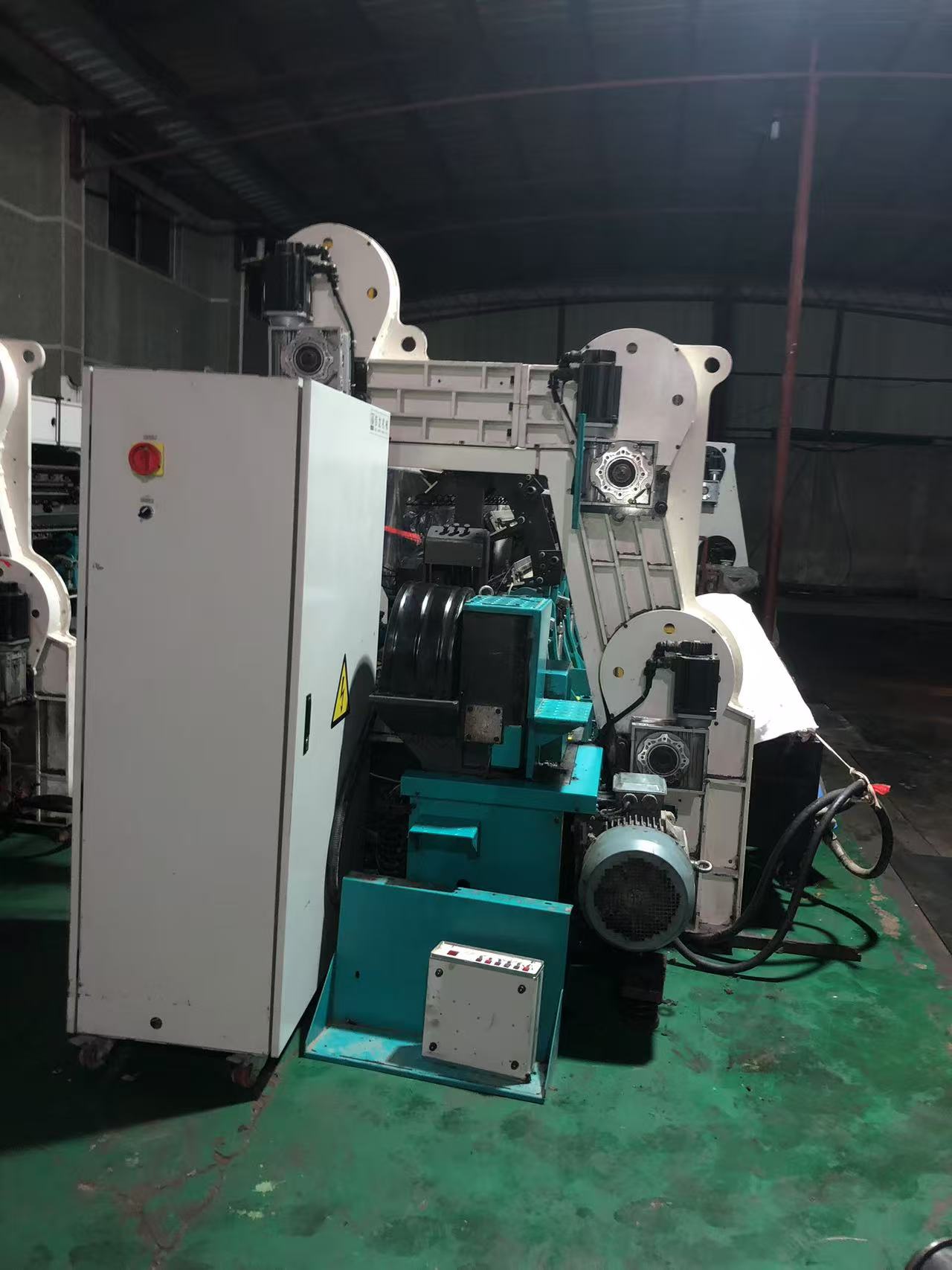

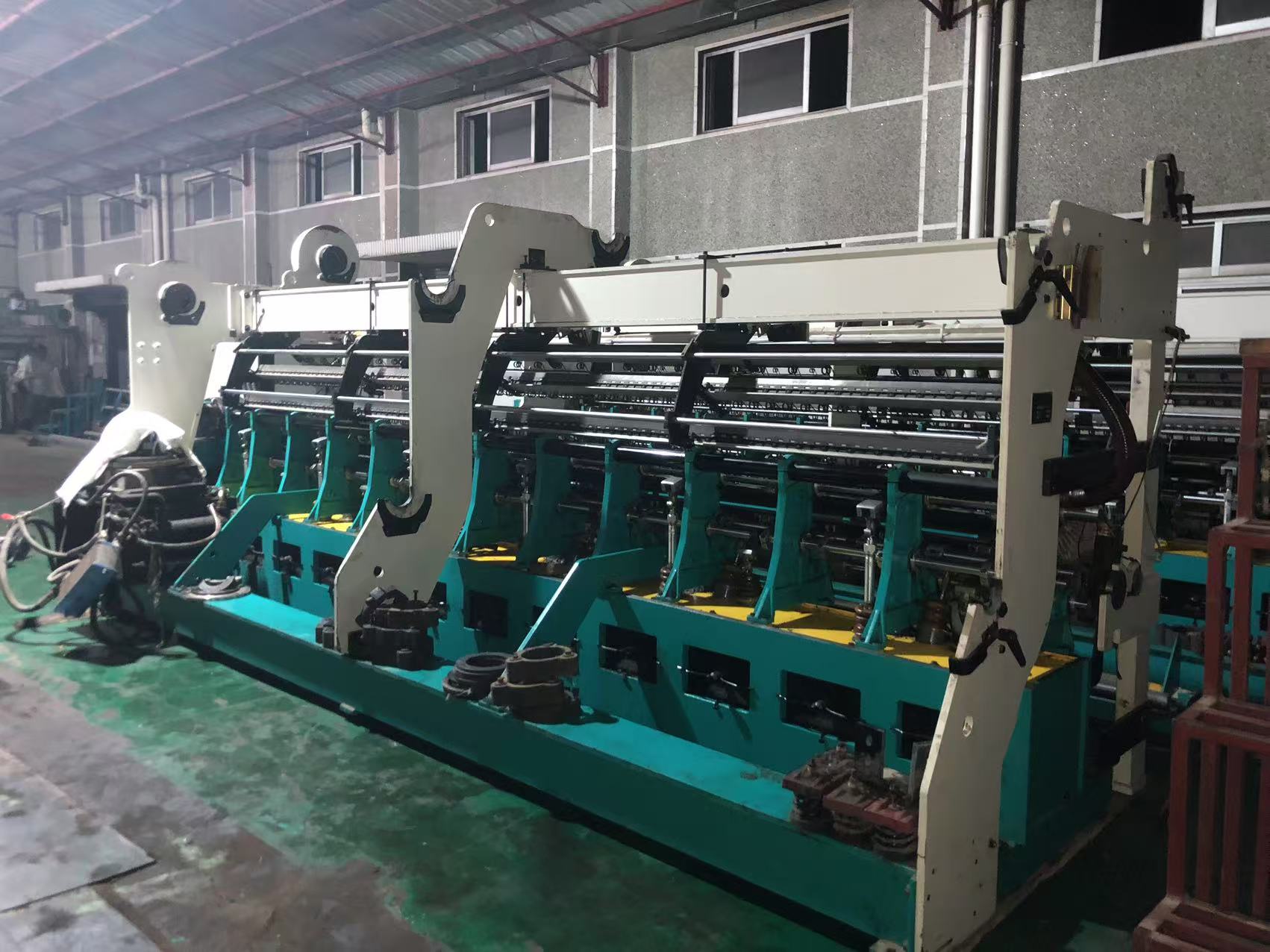

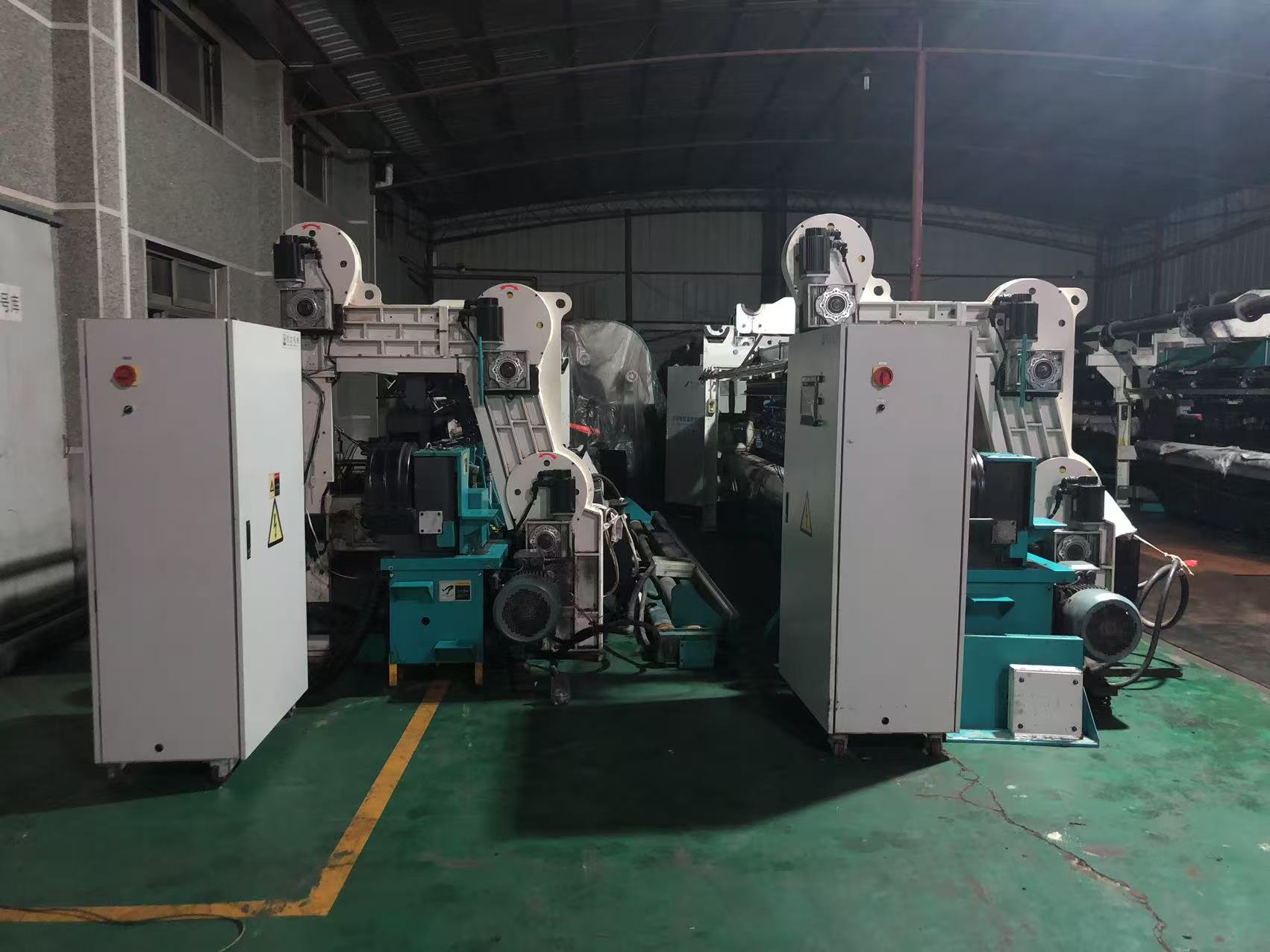

Introduction to Warp Knitting Machine Disk Heads
#### ** I. What is a coil? **
The "reel head", also known as the "warp shaft" in the warp knitting industry, is a key yarn feeding component on warp knitting machines. Its shape is usually a huge cylindrical or conical drum. Its core function is to continuously and stably convey thousands of warp yarns that have been parallel and evenly wound in the preparation process (such as warping) to the loop area of the warp knitting machine at a certain tension and speed, for knitting into fabric.
You can understand it as a huge yarn "supply warehouse" or "stringing frame", which serves as a bridge connecting the previous preparation process and the warp knitting process.
#### ** II. Main structure of the coil head **
A typical plate head mainly consists of the following parts:
1. ** Drum body ** : The main part of the reel head is a hollow drum with a surface that is usually very smooth to prevent the yarn from being scratched. The yarn is tightly wound around the cylinder.
2. ** Side discs ** : Two huge discs installed at both ends of the cylinder. Its core function is to ** restrict the yarn layer **, prevent the yarn from falling off or becoming disordered from both sides during high-speed unwinding, and ensure the smooth progress of yarn unwinding.
3. ** Shaft Core ** : A metal shaft running through the center of the disk head, with specific structures (such as keyways, flanges, etc.) at both ends, used to install and fix the disk head on the warp frame of the warp knitting machine.
4. ** Locking device ** : It is used to firmly lock the side plate onto the shaft core to ensure that the plate head does not loosen during high-speed operation.
#### ** III. Core functions of the disk head **
1. ** Storage and supply of yarn ** : This is the most fundamental function of the yarn reel. It stores a huge length of warp yarns, enabling the warp knitting machine to operate continuously for long periods without the need for frequent shutdowns to change yarns.
2. ** Control of warp feeding tension ** : The winding head is driven by the ** warp feeding mechanism ** behind it, which can achieve a ** constant ** or ** variable ** according to the pattern requirements of the warp feeding volume. Maintaining uniform and stable unwinding tension is the key to obtaining high-quality, flawless knitted fabrics.
3. ** Supporting yarn structure ** : When weaving complex patterns, different reel ends can respectively support different types, colors or specifications of yarns, thereby forming rich patterns, textures and effects in the fabric.
#### ** IV. Classification of plate heads **
According to different application requirements and machine types, there are various classification methods for disk heads:
** * Classified by applicable models ** :
** * Trick warp knitting machine head ** : Usually smaller in size and lighter in weight, it is suitable for high-speed and batch production of fabrics such as underwear and mesh.
** * Raschel warp knitting machine head ** : Usually larger in size, heavier and stronger, it is used to produce thick and complex fabrics, such as curtains, blankets, industrial fabrics, etc.
** * Jaka warp knitting machine head ** : For machines equipped with Jaka jacquard devices, multiple heads may be required to separately control the weave and pattern weave of the yarn.
** * Classified by the shape of the side plates ** :
** * Straight edge Plate ** : The edge plate is vertical and suitable for most common fabrics.
** * Conical edge disk ** : The edge disk has a certain taper, which helps the smooth unwinding of certain special yarns (such as elastic yarns) and prevents friction on the edge disk.
** * Classified by material ** :
** * Steel/alloy steel coil head ** : High strength and good rigidity, suitable for heavy-duty and high-tension applications, it is the mainstream choice.
** * Aluminum alloy coil head ** : It is light in weight and has low inertia, which is conducive to machine speed-up and energy conservation, but it is relatively expensive.
** * Composite material disk head ** : It has the advantages of lightweight and corrosion resistance, and is applied in some special fields.
#### ** V. Application and Importance of the coil head **
The winding head is almost applied in the production process of all warp knitted fabrics, from light and thin lace trims, sportswear fabrics, mosquito nets, to heavy sofa fabrics, car interiors, advertising light box fabrics, and even industrial textiles such as geogrids, all of which cannot do without the stable operation of the winding head.
Its significance is reflected in
** * Directly affecting the quality of the fabric surface ** : The upturn jumping, poor dynamic balance or uneven tension will directly cause defects such as stripes, cloud spots and holes on the fabric surface.
** * Impact on production efficiency ** : A high-quality disk head can ensure long-term high-speed operation without failure and reduce downtime.
** * Determine the product range ** : The number of winding heads, the working width and the winding head size of the machine determine the types of fabrics that can be produced, the complexity of the patterns and the width.
#### ** summary **
Although the warp knitting machine head may seem like a simple mechanical component, it is one of the "hearts" of the warp knitting production system. Its precision, stability and reliability directly determine the efficiency of warp knitting production, energy consumption and the quality of the final product. With the development of warp knitting technology towards high speed, high efficiency and intelligence, higher requirements have been put forward for the dynamic performance, lightweight and intelligent management of the warp knitting heads.
