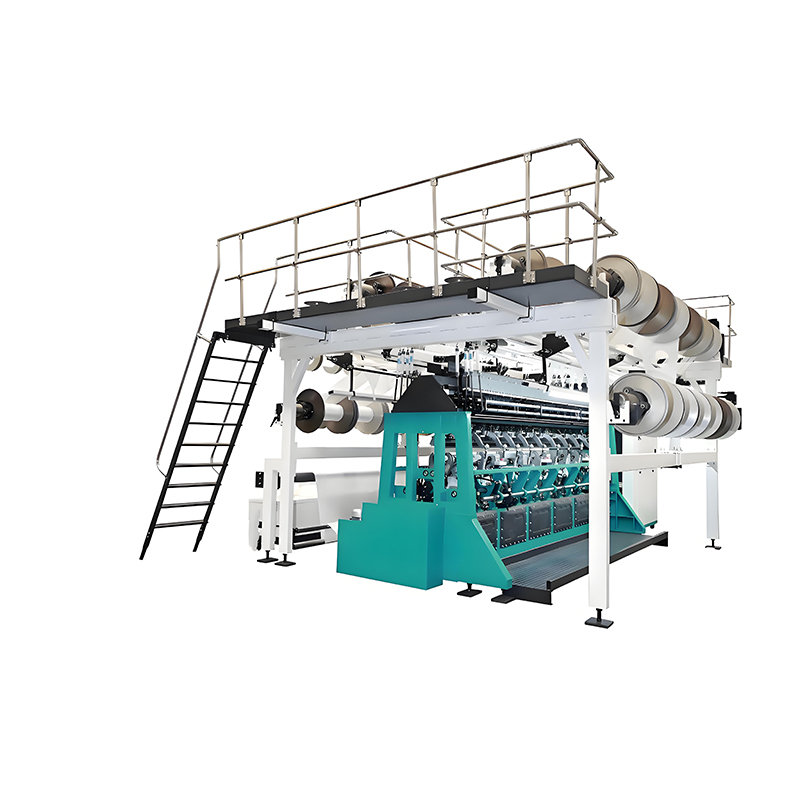

Introducing our advanced Double Needle Bar Raschel Machine Series, designed to meet the diverse and demanding needs of the textile industry. This series offers exceptional versatility, efficiency, and quality, making it the perfect choice for producing a wide range of fabrics with precision and speed.
More bars Jacquard wrap knitting machine mainly used in clothing, women’s underwear,lace fabric.It is computer control with Japan brand electronic parts,Combin Muti-bar with piezoelectronic jacquard wrap knitting technologies,Postive yarn Let-off manner,Two bars for selvedge locking for special functional lace fabric.And with Fall-Plate jacquard machine with more patterns,embossed and Plateau effect.
Experience the future of textile manufacturing with our Double Needle Bar Raschel Machine Series. Combining advanced technology, versatile functionality, and robust construction, this machine series delivers unmatched performance and quality in fabric production. Whether you're producing delicate lace, intricate patterns, or heavy-duty fabrics, our Double Needle Bar Raschel Machine is your ultimate solution. Elevate your production line with a machine that sets new standards in efficiency, precision, and reliability.
Gauze
| E22;E24;E26;E28 |
|---|
| Working width | 90”;100”;110”;138”;170” 190” |
|---|
| Speed | 50-800rpm(without special material and craft) |
|---|
| Needle Type | Latch needle block. Individual Latch Needle |
|---|
| MachineLength | 90”(3913)100”(4068)110”(4570”)138”(5285)-mm |
|---|
| Width | 5200mm |
|---|
| Height | 3540mm |
|---|
| Double pile height | 10-100mm |
|---|
| Number of bars | 5-6 ground bars,chose 1-2 separated jacquard bar |
|---|
Distance between knocking-over Bar
| 1-12mm |
|---|
| Pattern Drive | Pattern discs/EL |
|---|
| Take-up | Electronic take-up |
|---|
| Batching | Mechanical/Electrical batching(φ1270mm) |
|---|
| Yarn let-off | EBC,EBA |
|---|
| Beams | 21”-30” |
|---|
| Main Power | 3KW-5.5KW-7.5KW（according to the working width) |
|---|
