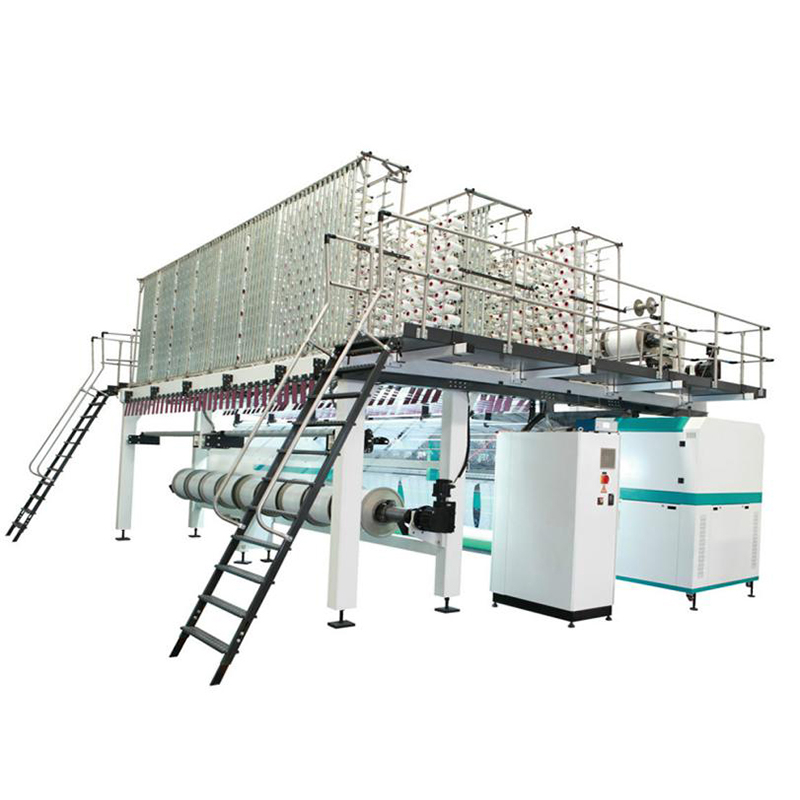

Introducing our high-performance Lace Machine, designed to meet the intricate demands of modern textile production with precision and efficiency. This advanced machine is equipped with a range of features that make it an ideal choice for creating exquisite lace fabrics.
Experience the future of textile production with our state-of-the-art Lace Machine, where precision engineering meets creative design. Whether you're producing delicate lingerie fabrics or intricate home textiles, this machine delivers unmatched performance and quality. Elevate your production line with a machine that combines advanced technology, efficiency, and versatility.
Gauze
| E18,E24,E28(134”) |
|---|
| Working width | 3403mm(134”) ;5080mm(200”) |
|---|
| Bar Number | 1 Ground bar, 72 Pattern bar,1 Spandex Bar,1 Separated Jacquard bar |
|---|
| Speed | 134” E18 20-650rpm 134” E24 20-700rpm 134”E28 20-600rpm 200” E18:20-630rpm 200 E24:20-650rpm. |
|---|
| Shogging Manner | Electronic Shogging |
|---|
| Let-off Manner | 3 EBC electronic let-off |
|---|
Pattern Bar Let-off Manner | Creel Let-off |
|---|
| Draw-off Manner | Electronic Draw-off |
|---|
| Take-up Manner | Electronic uniform Take-up |
|---|
| Shogging Amount | 180mm |
|---|
Pattern Needle | Steel Unfixed Needle |
|---|
| Beams | Ground barφ30”,Jacquard bar φ30”,Spandexφ21” |
|---|
Main Power
| 5.5KW(134”),7.5KW(200”) |
|---|
