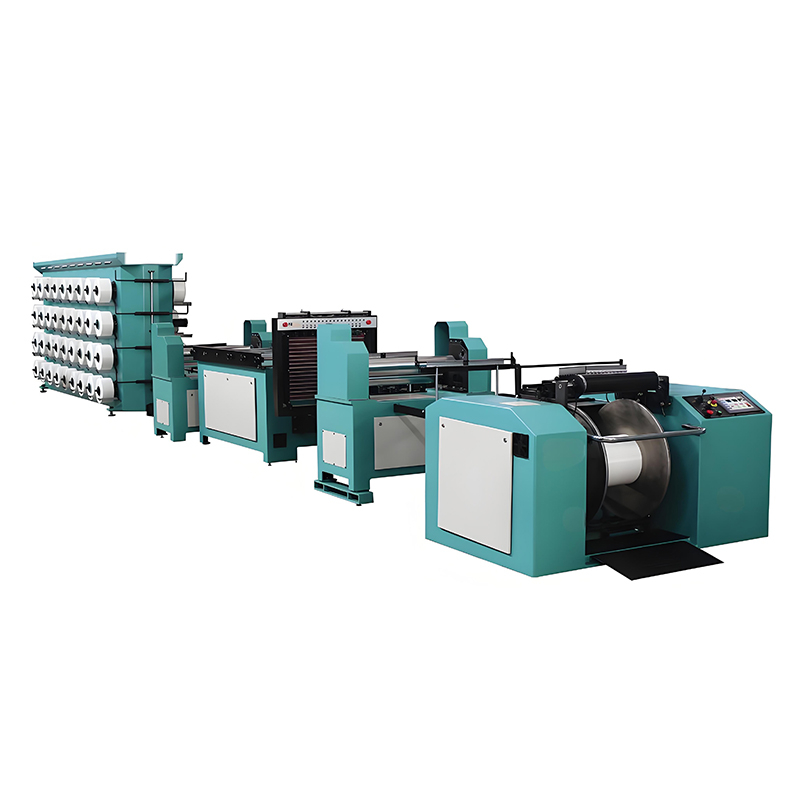

The Split Warping Machine is a state-of-the-art textile machinery designed for precision and efficiency in the warping process. Ideal for medium to large-scale textile production, this machine ensures high-quality warp beam preparation, enabling seamless weaving operations.
Key Features:
High-Speed Operation: Equipped with advanced motor technology, the Split Warping Machine delivers exceptional speed, significantly reducing production time while maintaining accuracy.
Precision Tension Control: The machine features an intelligent tension control system that ensures uniform tension across all warp threads, minimizing breakage and enhancing fabric quality.
User-Friendly Interface: With an intuitive touchscreen control panel, operators can easily set parameters, monitor progress, and troubleshoot issues, ensuring smooth operation.
Modular Design: The split configuration allows for easy maintenance and customization, adapting to various production needs and fabric types.
Energy Efficiency: Designed with energy-saving components, the machine reduces power consumption, contributing to lower operational costs and a smaller environmental footprint.
Durable Construction: Built with high-quality materials, the Split Warping Machine offers long-lasting performance, even under demanding production conditions.
Safety Features: Comprehensive safety mechanisms, including emergency stop buttons and protective covers, ensure a secure working environment for operators.
Applications:
Textile Manufacturing: Suitable for producing warp beams for a wide range of fabrics, including cotton, polyester, silk, and blended materials.
Industrial Weaving: Perfect for preparing warp beams for high-speed looms in industrial settings.
Custom Fabric Production: Ideal for creating specialized warp patterns for custom or designer fabrics.
Computerized control high speed warping machine for supply warping knitting machine,ribbon loom machine,The electronic parts,
Motor with foreign famous brand,Easy control,Highly efficient production capacity,It is suitable for material of Nylon,polyester raw
Yarn and Elastane.
For chosen the photographic stop monitoring device and radiation stop device,Safe and suitable.
Main Program Parameter
|
|
|---|
| Speed | 700m/Mi |
|---|
| Beams | 21”,30” |
|---|
| Beams Brake Manner | Pneumatic |
|---|
| Beam Clamp | Pneumatic Apparatus |
|---|
| Beam Lifting | Pneumatic Apparatus |
|---|
Tension roller power
| 4KW |
|---|
| Tension roller number | 2 |
|---|
| Creel Power | 7.2KW |
|---|
| Barking Distance | 700m/Min＜2 turns |
|---|
| Main Power | 5.5KW |
|---|
Machine adapt to raw yarn 72 ends(ends according to customer’s requirement)
