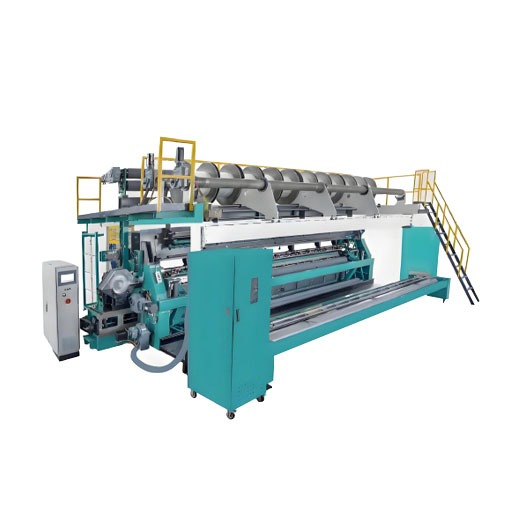

A Full Width Weft Insertion Warp Knitting Machine is an advanced textile machinery designed for producing high-quality, wide-width fabrics with superior stability and strength. It integrates weft insertion technology with warp knitting, making it ideal for manufacturing technical textiles, industrial fabrics, automotive textiles, geotextiles, and composite materials. Featuring high-speed operation, precision control, and automated functionality, this machine enhances production efficiency and ensures consistent fabric performance. Its versatility and ability to handle various yarn types make it a preferred choice for manufacturers seeking innovation in warp knitting technology.

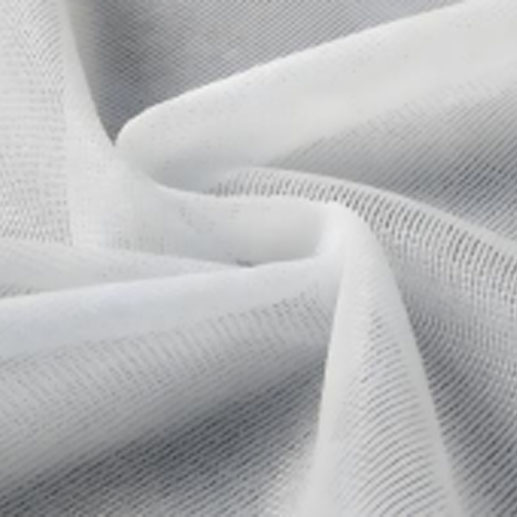

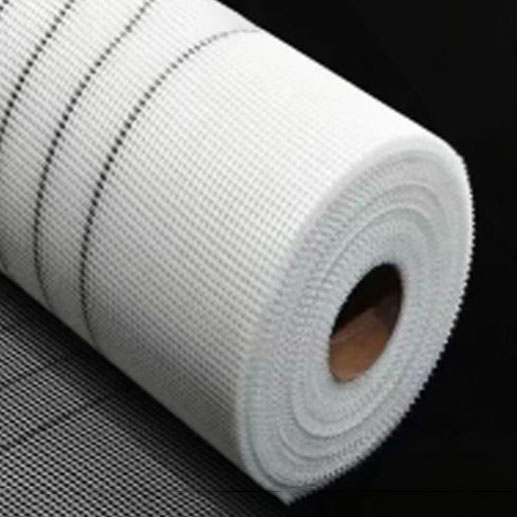

This machine meets variousneeds.It is for filament, staple fibretextured silk and other raw materials,and is more suitable for high coil densityknitting.The fabric ismainly used for high-quality garment lining.automobile interior,meshcurtains,decorative fabrics,rottenfabric and otherterminal uses.
| Gauze | E9/E12//E18/E24/E28 |
|---|
| Working width | 218” 245”(for all widths 2" extension possible) |
|---|
| Speed | 50-1550rpm(without special material and craft) |
|---|
| Needle Type | Compound Needle （51.55 G103) |
|---|

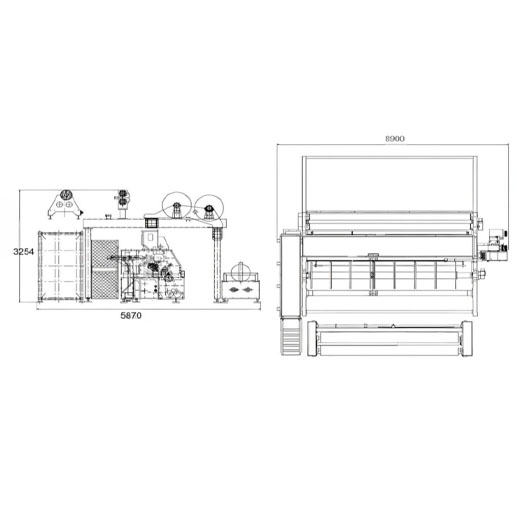

| Machine Length | 245”(8900mm) |
|---|
| Width | 5870 mm |
|---|
| Height | 3254 mm |
|---|
Number of bars
| 2 ground bars,chose 1 Bar of Filler Threads |
|---|
| Weft-insertion system | yarn laying carriage with 30 ends |
|---|
| Pattern Drive | Pattern discs/EL |
|---|
| Take-up | Electronic take-up |
|---|
| Batching | Mechanical/Electrical batching(φ1270mm) |
|---|
| Yarn let-off | EBC,EBA |
|---|
| Beams | 32”- 40” |
|---|
| Main Power | 7.5KW-11KW（According to the working width) |
|---|
| Weft creel with pre-winders |
|---|
