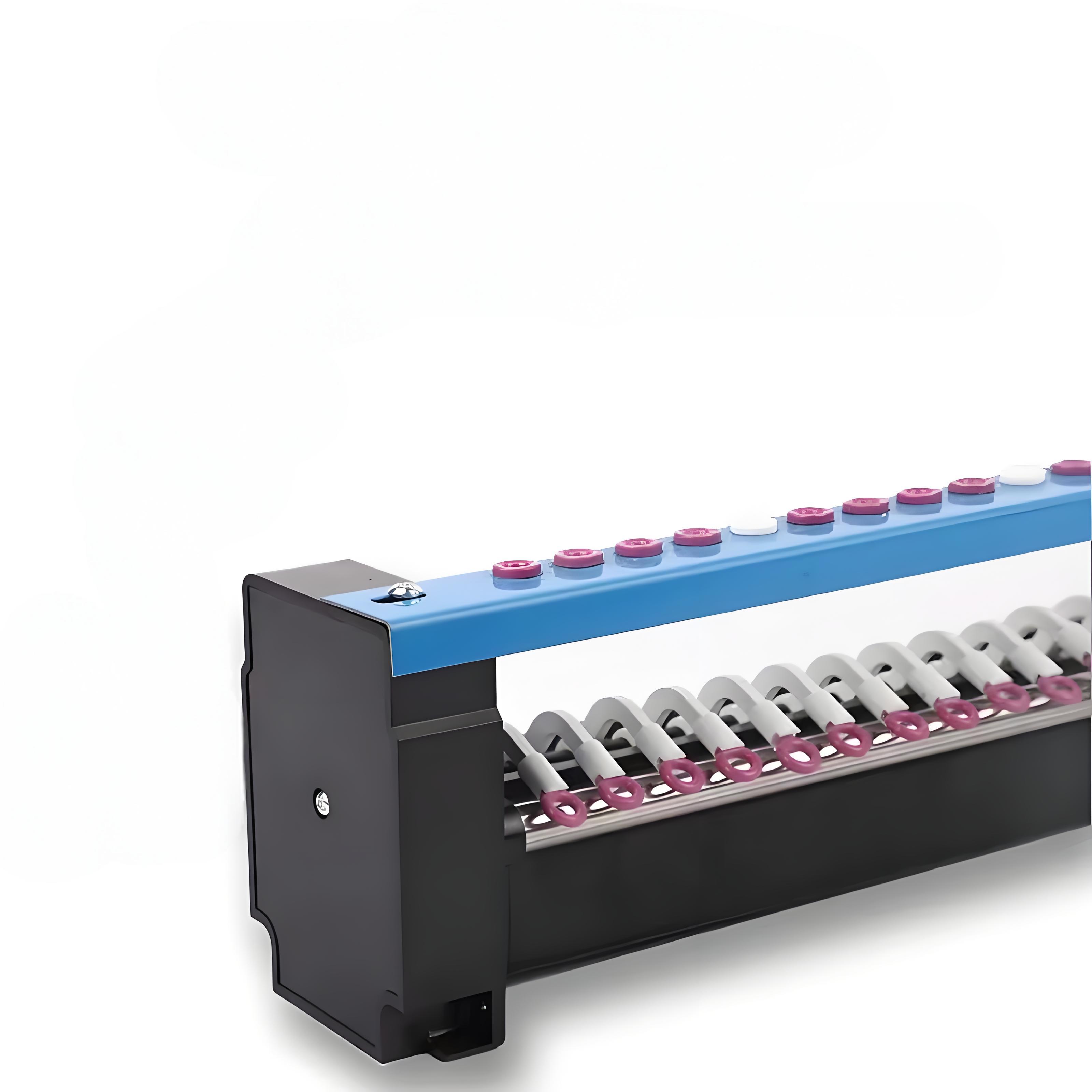

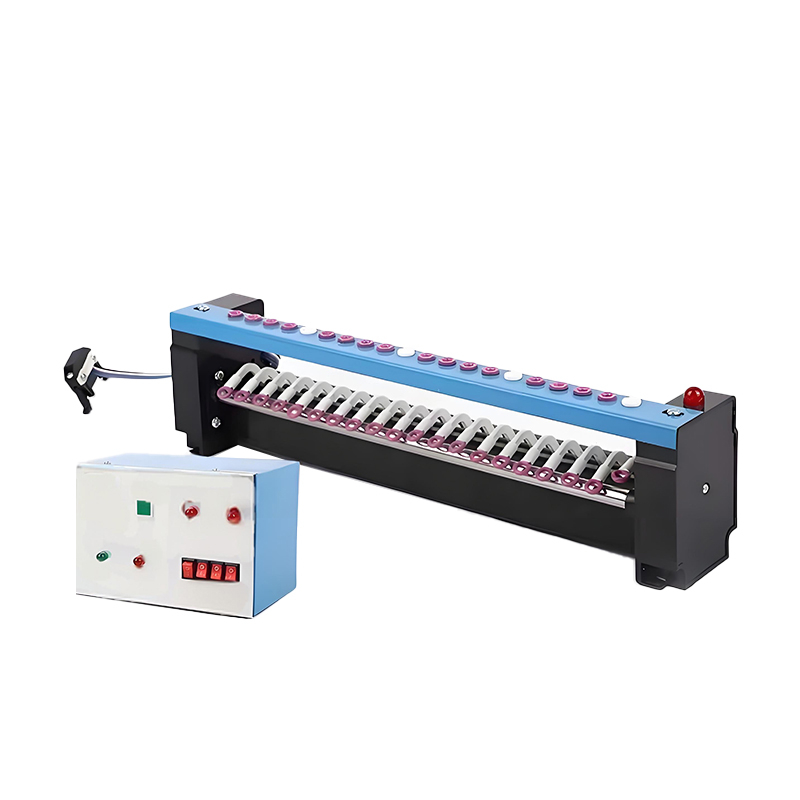

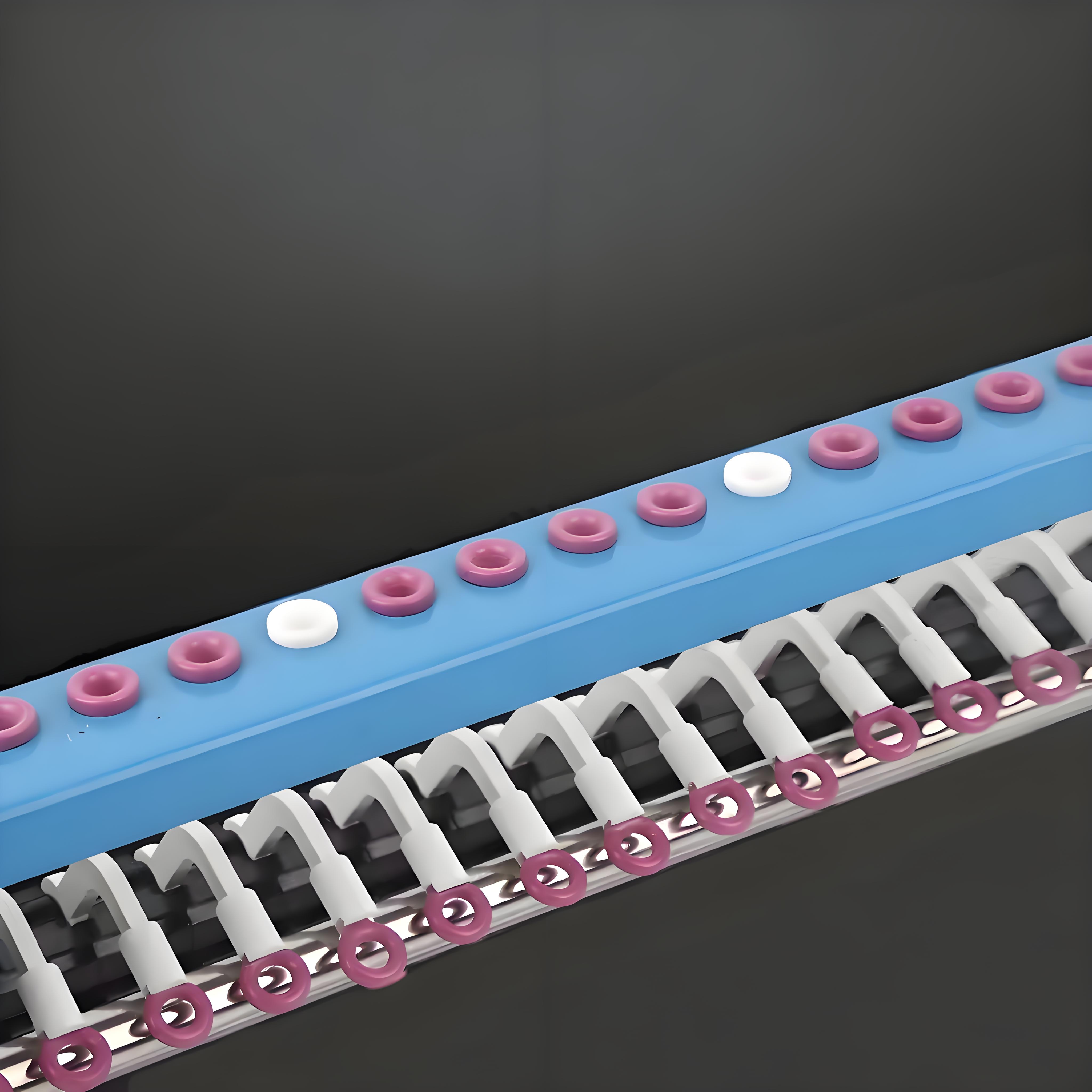

Smart Infrared Sensor for Real-time Yarn Break Detection

The Infrared Yarn Break Auto-Stop Device is an advanced, automated monitoring system designed for textile machinery to detect yarn (warp or weft) breaks in real-time. Utilizing cutting-edge infrared photoelectric technology, this device immediately stops the machine and triggers an alarm when a yarn break is detected. It effectively prevents fabric defects, reduces material waste, and enhances production efficiency and product quality.

Key Features:

1. High-Precision Infrared Sensor:

• Employs infrared beam technology to accurately monitor yarn movement.

• Provides rapid response and real-time detection of yarn breaks.

2. Automatic Stop Function:

• Stops the machine automatically upon detecting a yarn break, preventing the production of defective fabric.

3. Alert System:

• Equipped with audible and visual alarms to promptly notify operators of yarn breaks.

4. Easy Installation and Maintenance:

• Simple structure, easy to install, and compatible with various types of textile machinery.

• Low maintenance costs and reliable operation.

5. Wide Applicability:

• Suitable for weaving machines, warp knitting machines, knitting machines, and other textile equipment.

How It Works:

• An infrared beam is directed across the yarn's path.

• During normal operation, the yarn continuously interrupts the infrared beam.

• If the yarn breaks, the infrared beam is no longer interrupted, and the sensor immediately detects the change.

• The control unit receives the signal, stops the machine, and activates the alarm system.

Core Advantages:

1. Improved Production Efficiency:

• Reduces manual intervention with automatic detection and stopping, minimizing downtime.

2. Enhanced Product Quality:

• Prevents fabric defects caused by yarn breaks, ensuring consistent product quality.

3. Reduced Material Waste:

• Stops the machine promptly to avoid wasting yarn and other production resources.

4. User-Friendly Operation:

• Intuitive interface and easy operation, suitable for various textile enterprises.

5. Cost-Effective Solution:

• Provides efficient production monitoring at a low cost, delivering a high return on investment.

Applications:

• Weaving Machines: Monitors warp and weft yarn breaks.

• Warp Knitting Machines: Detects warp yarn breaks to ensure fabric integrity.

• Knitting Machines: Tracks yarn movement and prevents breaks during production.

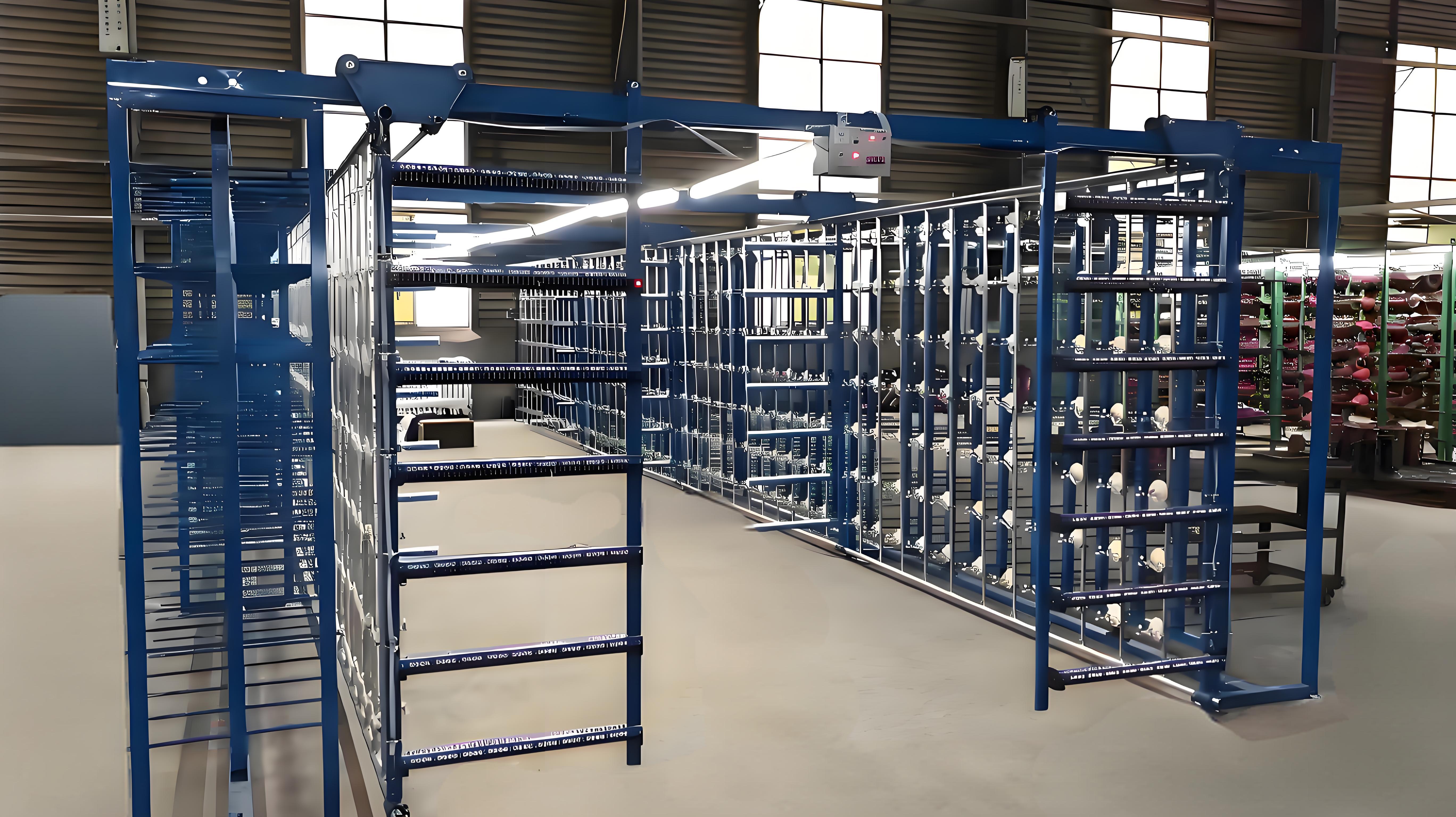

• Other Textile Equipment: Such as warping machines, sizing machines, and more.

Why Choose the Infrared Yarn Break Auto-Stop Device?

Yarn breaks are a common issue in textile production, often leading to fabric defects, material waste, and reduced efficiency. The Infrared Yarn Break Auto-Stop Device leverages high-precision infrared detection and automated control to quickly address yarn break issues. It is an ideal solution for modern textile enterprises aiming to improve production efficiency and reduce costs.
