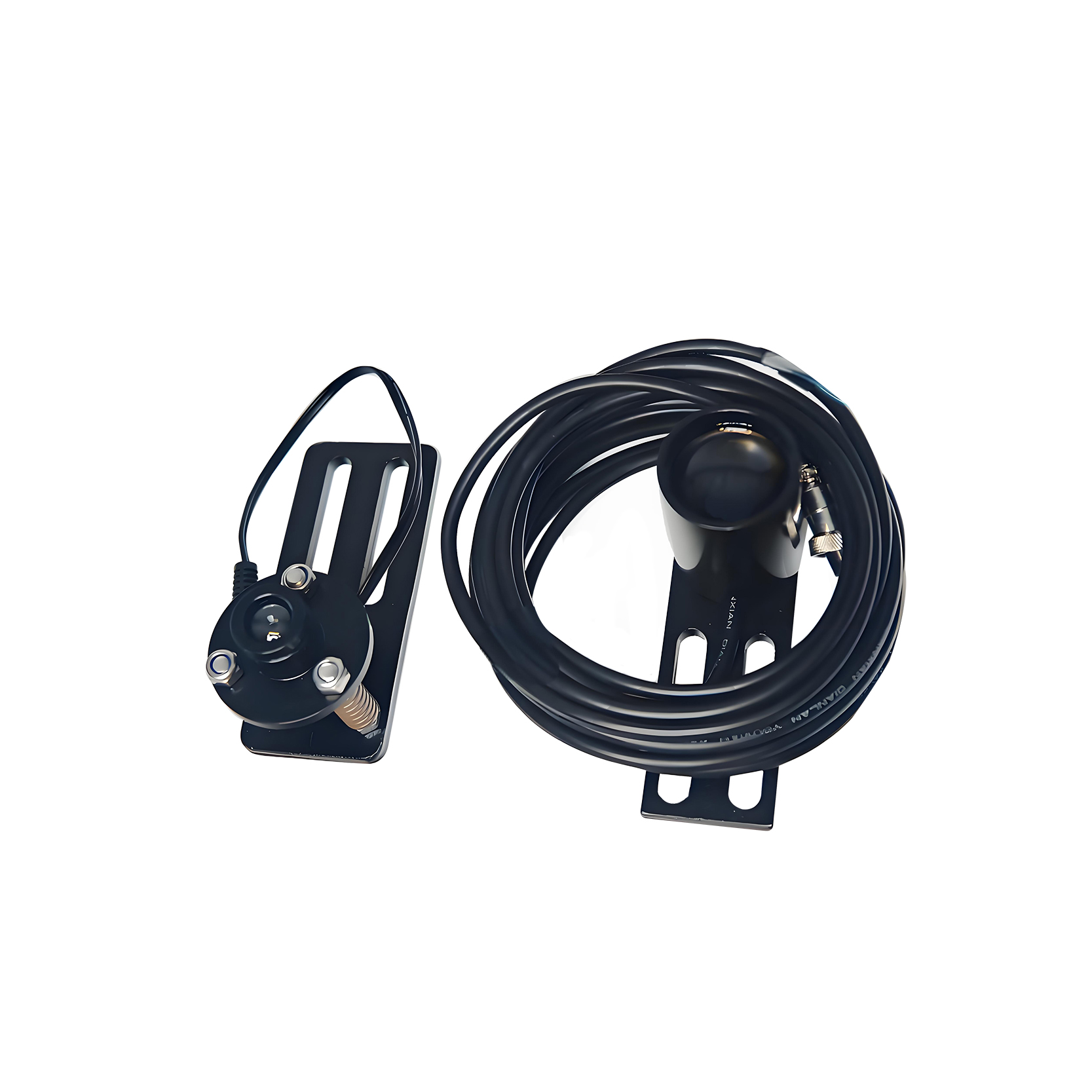

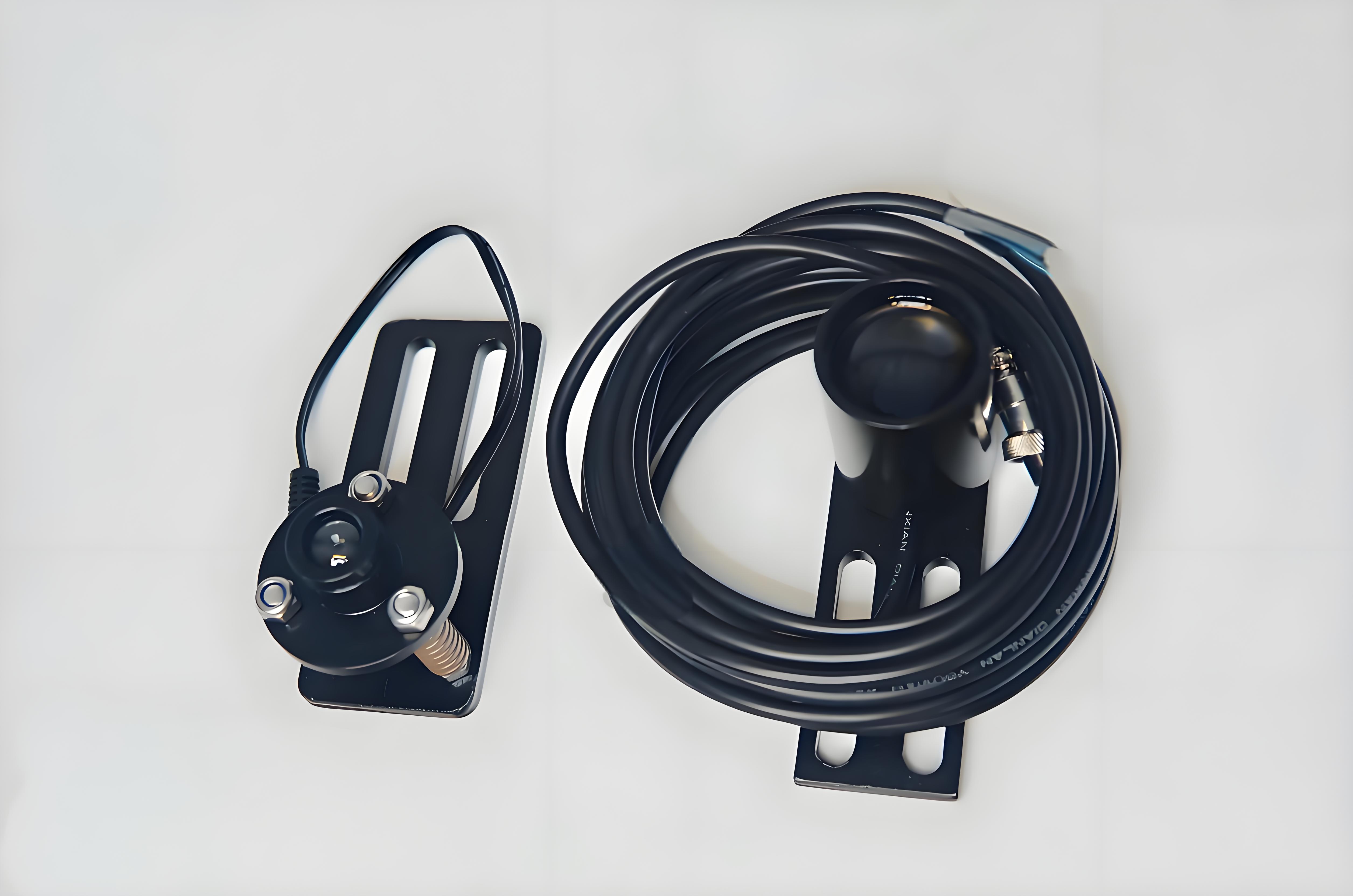

Warp Knitting Machine Yarn Break Laser Stop Device

A Warp Knitting Machine Yarn Break Laser Stop Device is a specialized system designed to detect yarn breaks or irregularities in warp knitting machines. Warp knitting is a textile production process where yarns are knitted in a vertical (warp) direction, and any yarn breakage can lead to defects in the fabric. This device ensures the machine stops automatically when a yarn break is detected, minimizing fabric defects and improving production efficiency.

Key Components and Functionality:

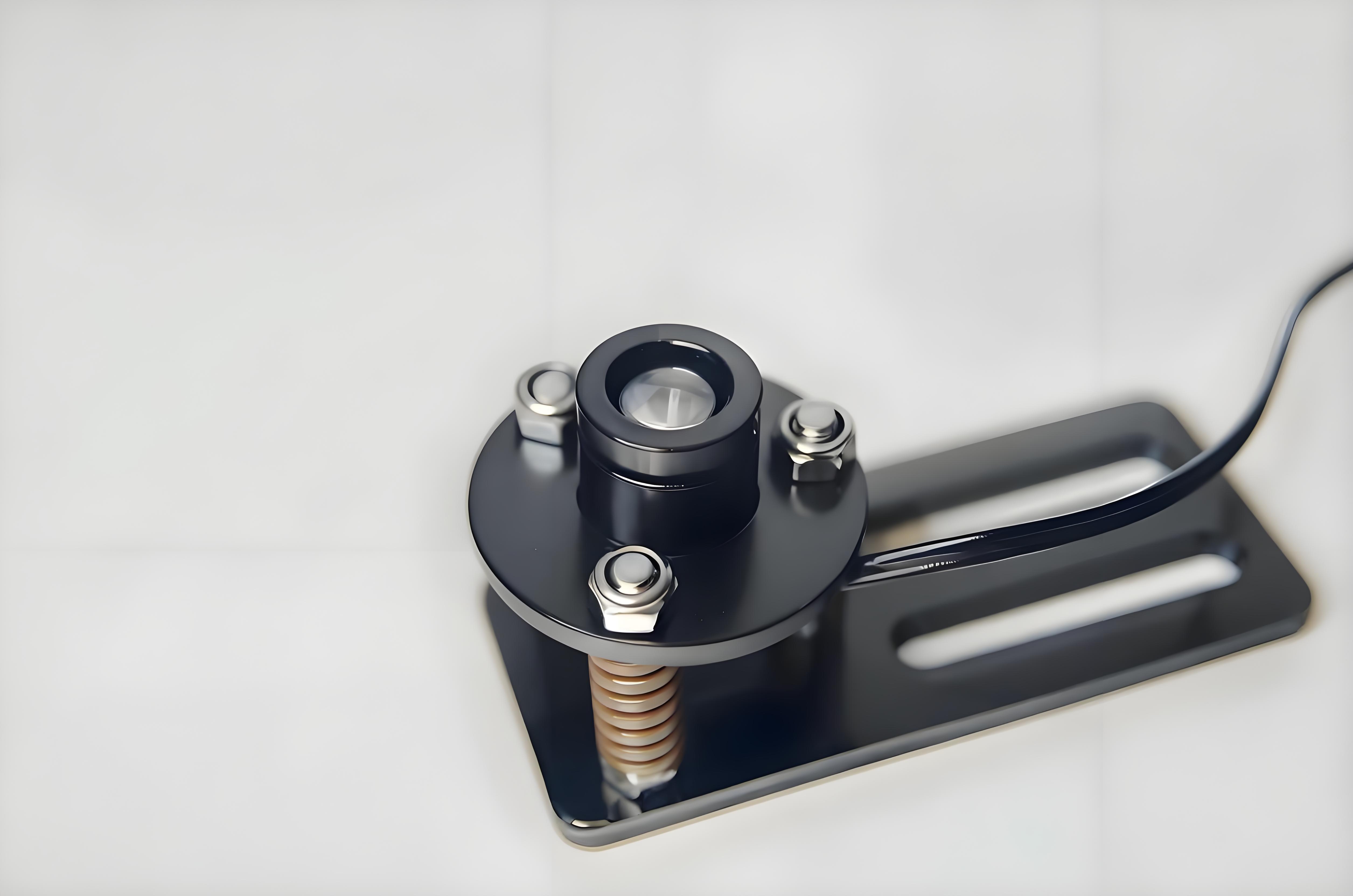

1. Laser Sensor System:

• Emits a laser beam to monitor the yarn path.

• Detects yarn breaks or irregularities by sensing interruptions in the laser beam.

2. Yarn Guides/Eyelets:

• Guides the warp yarns through the machine.

• Positioned in a way that allows the laser beam to monitor the yarns as they pass through.

3. Control Unit:

• Processes signals from the laser sensor.

• Triggers an automatic stop if a yarn break or irregularity is detected.

4. Stopping Mechanism:

• Halts the warp knitting machine immediately when a yarn break is detected, preventing further production of defective fabric.

5. Alert System:

• Provides visual or audible alerts to notify operators of a yarn break, enabling quick intervention.

How It Works:

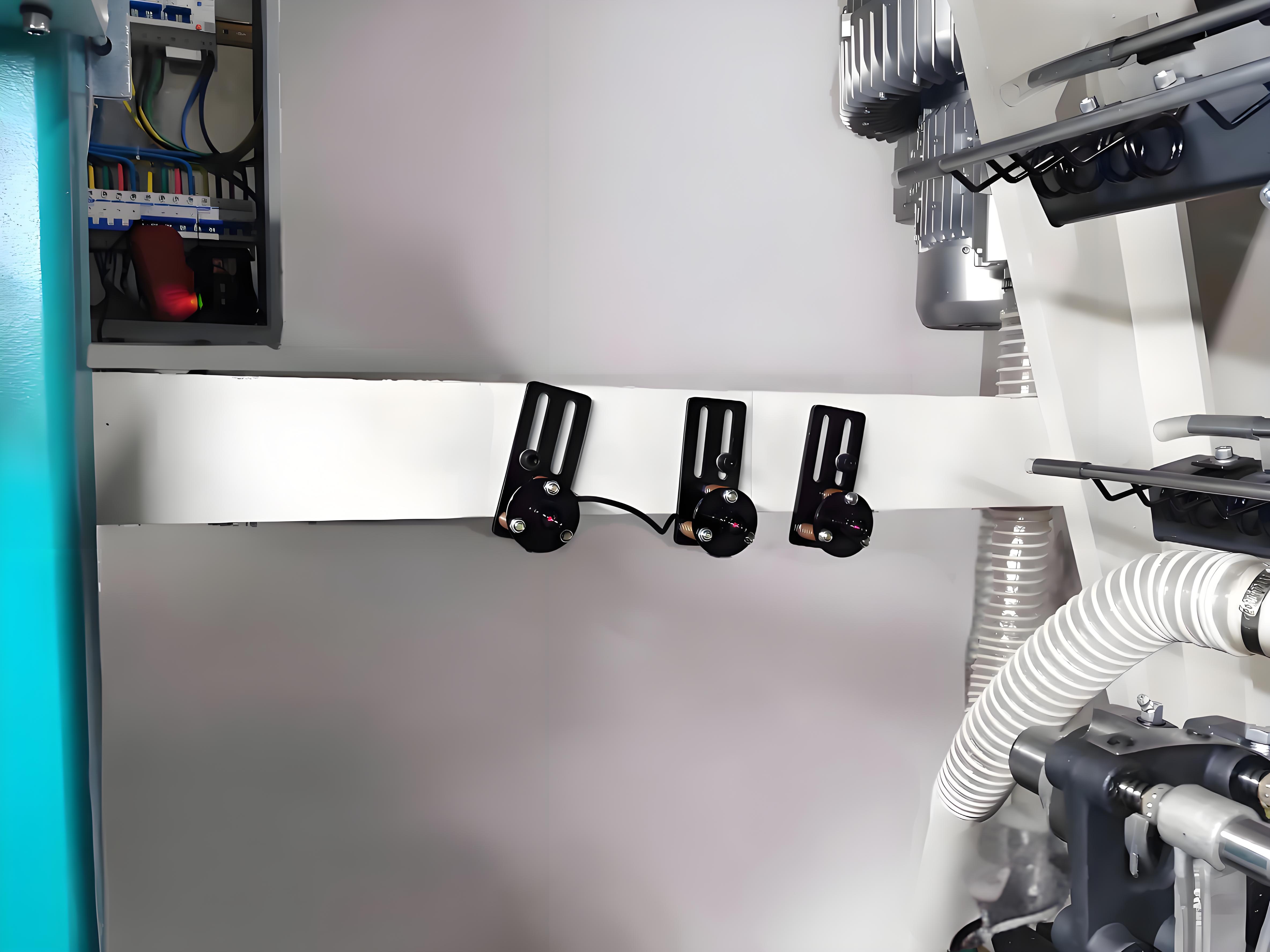

• The laser beam is directed across the path of the warp yarns.

• As the yarns move through the machine, they continuously interrupt the laser beam.

• If a yarn breaks or becomes irregular, the laser beam is no longer interrupted, signaling the control unit.

• The control unit stops the machine and activates the alert system to notify the operator.

Benefits:

1. Improved Fabric Quality:

• Prevents defects caused by yarn breaks, ensuring high-quality fabric production.

2. Reduced Material Waste:

• Minimizes waste by stopping the machine immediately after a yarn break.

3. Increased Efficiency:

• Reduces downtime and manual intervention, improving overall production efficiency.

4. Operator Convenience:

• Alerts operators to issues quickly, allowing for faster troubleshooting and machine restart.

5. Cost Savings:

• Reduces the cost of reworking or discarding defective fabric.

Applications:

• Used in warp knitting machines for producing fabrics such as:

• Lace fabrics

• Mesh fabrics

• Technical textiles

• Upholstery fabrics

• Sportswear fabrics

Why It’s Important:

In warp knitting, yarn breaks can lead to significant fabric defects, such as holes or uneven patterns. The Yarn Break Laser Stop Device ensures that the machine stops immediately when a break occurs, preventing defects and maintaining the quality of the final product. This technology is essential for modern textile manufacturing, where efficiency and quality are critical.
